A huge and highly capable spraying drone that can help farms quickly sow, fertilize, irrigate, spray pesticides, and save the time and cost of contract termination.
Item No :
92LOrder(MOQ) :
10Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :
5-20days92L/100KG Fertilization Sowing Pesticide Spraying Irrigation Agriculture Drone

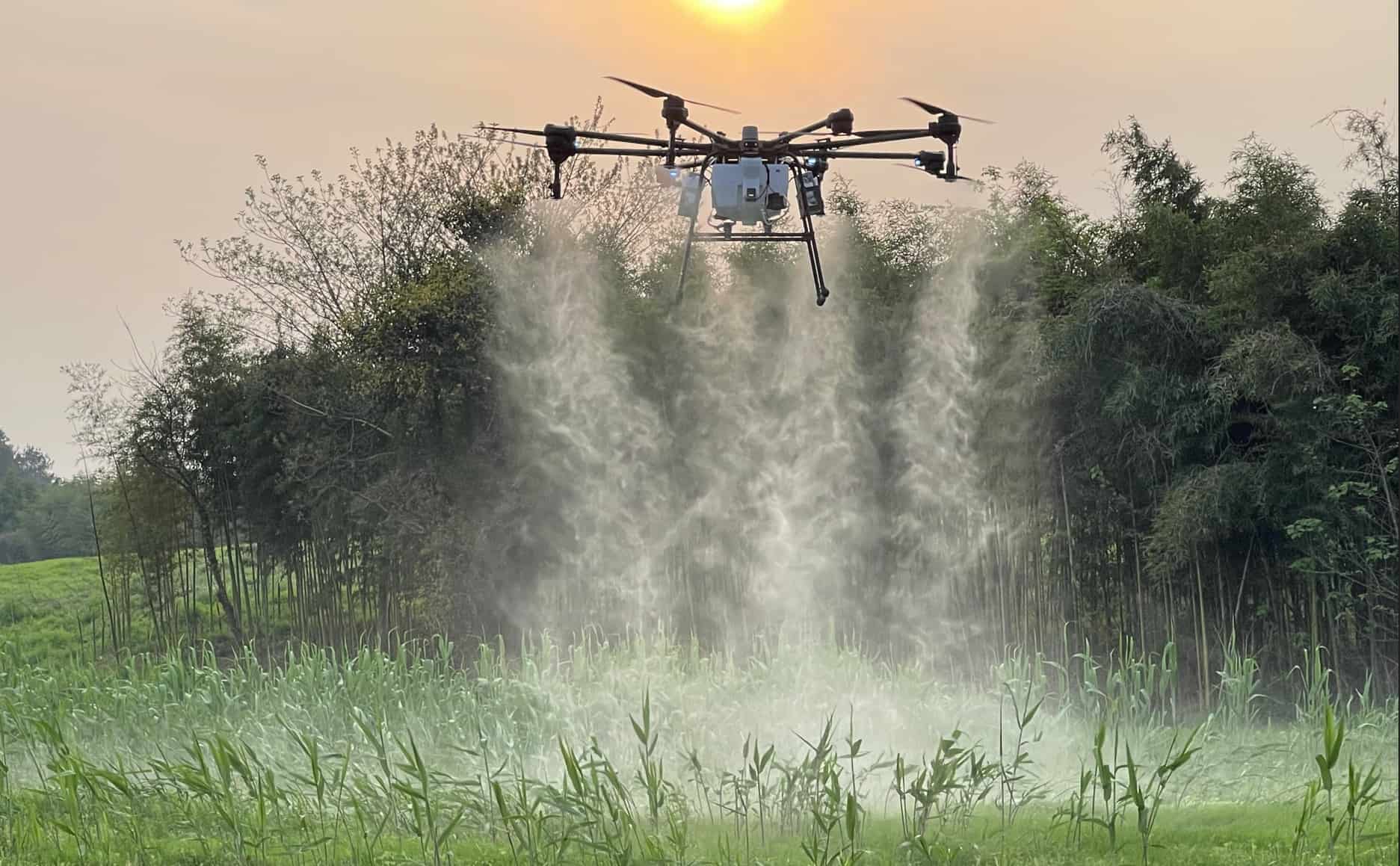

This agricultural drone is an unmanned aerial vehicle used for agricultural and forestry plant protection operations. It consists of three parts: a flight platform, GPS flight control, and a spraying mechanism. It can spray pesticides, seeds, powders, and other operations through ground remote control or GPS flight control.
The main components of agricultural drones include flight platforms (fixed wing, single rotor, multi rotor), GPS flight control systems, and spraying mechanisms. The flight platform provides flight capabilities, the GPS flight control system ensures the accuracy of the drone's positioning and flight path, and the spraying mechanism is responsible for implementing spraying operations.
The application of agricultural drones in agriculture is very extensive, not only for spraying pesticides, but also for various tasks such as fertilizing, sowing, and feeding. They can quickly and efficiently provide the latest information, helping farmers increase crop yields, save time, reduce expenses, and take action with unparalleled accuracy and precision.

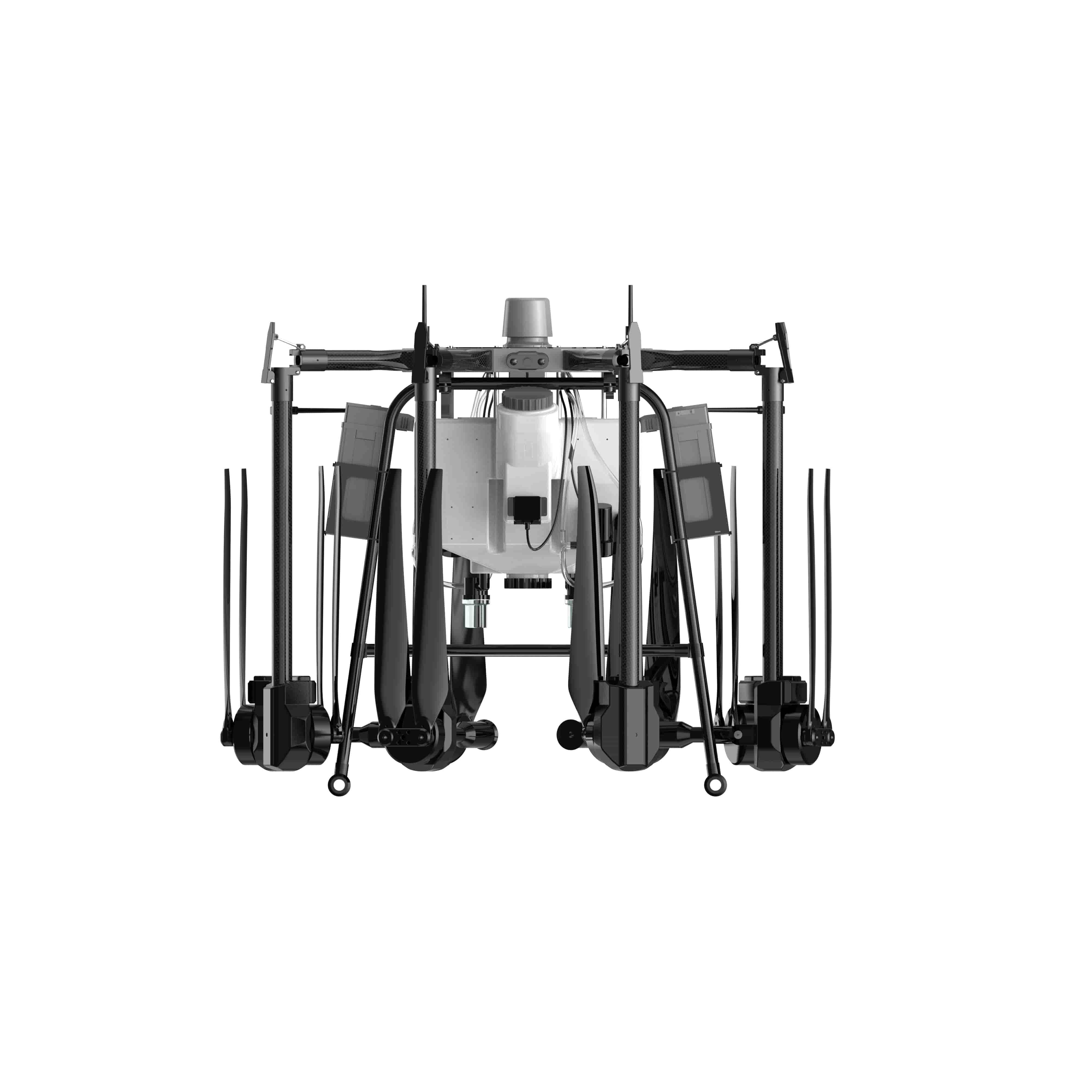

BEONDT 92L agricultural drone can cover multiple scenarios of "agriculture, forestry, animal husbandry, and fishing" operations, including field spraying, field sowing, fruit tree spraying, fruit tree sowing, and aquatic product sowing. T60 adopts high-strength propeller blades and large load motors, with the ability to carry 92L spraying load and 100kg sowing load, suitable for various complex terrains and crops.
Aerial Platform | |
Structural Design | 8-Axis, Fold-down |
Dimensions (folded) | 1300*1300*1300 mm |
Dimensions (unfolded) | 3160*3160*1300 mm (propeller folded) 4445*4445*1300 mm (propeller unfolded) |
Weight | 71 kg |
Max. Take-off Weight | 193 kg |
Rated Payload | 100 kg |
Max. Liquid Capacity | 92 L |
Waterproof Grade | IP67 |
Aircraft Engine Lifespan | ≥ 100,000 hours |
Aircraft Frame Lifespan | ≥ 10 years |
Flight Parameters |
|
Max. Flight Altitude |
≤ 20 m |
Max. Flight Radium |
5 km |
Flight Time |
6 ~ 15 mins |
Max. Flight Speed |
15 m/s |
Omnidireactional Hovering |
Capable of Hovering in any Direction |
Obstacle Avoidance |
Standard Front and Rear Obstacle Avoidance Radar |
Terrain Follwing Flight |
Standard Terrain-following Radar |
Flight Mode |
Auto / AB Point / Manual |
GNSS |
GPS / BDS / Glonass |
Camera |
HD FPV Camera |
Night Flight Mode |
High-brightness LED Night Navigation Light |
Remote Control |
5.5-inch High Brigh Screen |
Automatic- Features |
Automatic Altitude Hold, Automatic Position Hold, Automatic Obstacle Avoidance,Return to Home (RTH) on Loss of Control / Low Voltage / Empty Tank,Breakpoint Resumption Spraying |
New Feature |
Quick-release Arms and Landing Gear, Cabin Cooling System |
Spraying System | ||
Liquid Tank | Capacity | 92 L |
Nozzles | Nozzle Type | Centrifugal Nozzles |
Quantity | 4 | |
Spray Width | 8 ~20 m | |
Pump | Quantity | 2 |
Max. System Flow Rate | 24 L/min | |
New Feature | Dual External Filters |
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
FAQs
1. What is the approximate service life of a drone?
5-10 years, mainly depends on the user's maintenance of the drone.
2. How many flight hours?
Mainly, the battery needs to be replaced with a new one after 400-500 cycles of charging.
3. Which parts need to be replaced regularly?
Propellers, landing gear, water pumps, centrifugal nozzles, we recommend equipping each drone with 2 pairs.
4. What services does the drone need?
Clean the drone frequently and pay attention to whether the screws are loose and need to be replaced.
5. How long is the interval?
Mainly depends on the user's use. You should observe the condition of the drone frequently.
Why choose BEONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
