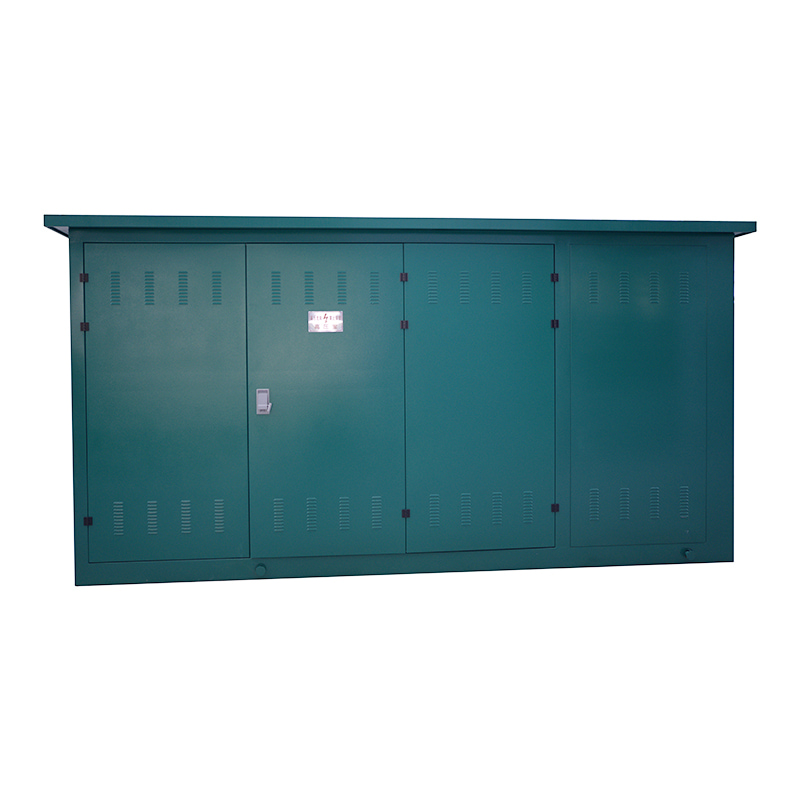

European style substation(Prefabricated substation) series is widely used in urban power grid renovation,residential areas,high-rise buildings,factories and mines,hotels, shopping malls,airports,railways,oil fields,docks,highways,temporary electricity factories and other indoor and outdoor places.
Usage condition:
> Altitude: not exceeding 1000m;
> Ambient temperature: -25°C ~+40°C
> Relative hum心ity: The daily average value shall not exceed 95%, and the monthly average value shall not exceed 90%;
> Installation location: Places without fire and explosion hazards, conductive dust, chemical corrosive gas and severe vibrations. If the above conditions are exceeded, users can negotiate with our company.
|
No.
|
Item |
Unit |
High voltage electric apparatus |
Transformer |
Low voltage electric apparatus |
|
1 |
Rated voltage |
kV |
6/10 |
6/0.4 10/0.4 |
0.4 |
|
2 |
Rated capacity |
kVA |
|
50-1600 |
|
|
3 |
Rated current |
A |
200,400,630 |
|
100-3200 |
|
4 |
Rated short-circuit breaking current |
A |
Load switch 400-630 |
|
15-63kA |
|
kA |
The combination switch depends on the fuse |
|
|||
|
5 |
Rated short-circuit withstand current |
kA |
16,20(4s) |
|
15(1s) |
|
|
30(1s) |
||||
|
6 |
Rated peak withstand current |
kA |
31.5,50 |
|
30 |
|
|
63 |
||||
|
7 |
Power frequency withstand voltage(1min) |
kA |
Phase to ground and phase to phase 32/42 |
25/35(oil-immersed) |
≤0.3,2 |
|
Isolating distance 36/48 |
20/28(dry-type) |
＞0.3,,2.5 |
|||
|
8 |
Lightning impulse withstand voltage(peak) |
kA |
Phase to ground and phase to phase 60/75 |
60/75 |
|
|
Isolating distance 70/85 |
|
||||
|
9 |
|
|
|
IP32 |
|
|
10 |
Noise level |
db |
|
55 |
|
|
11 |
|
|
GB/T 17467 |
|
|
|
|
DL/T 537 |
|
|
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
