This product series is widely used in urban power grid renovation,residential areas and other public places,as well as indoor and outdoor places such as factories,mines,hotels,airports,railways,docks and highways.Standards: G8/T17467-2010 high voltage/low voltage prefabricated substation: DLT537-93 Technical conditions for ordering 6-35kV box substation.
Item No :
1781Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :

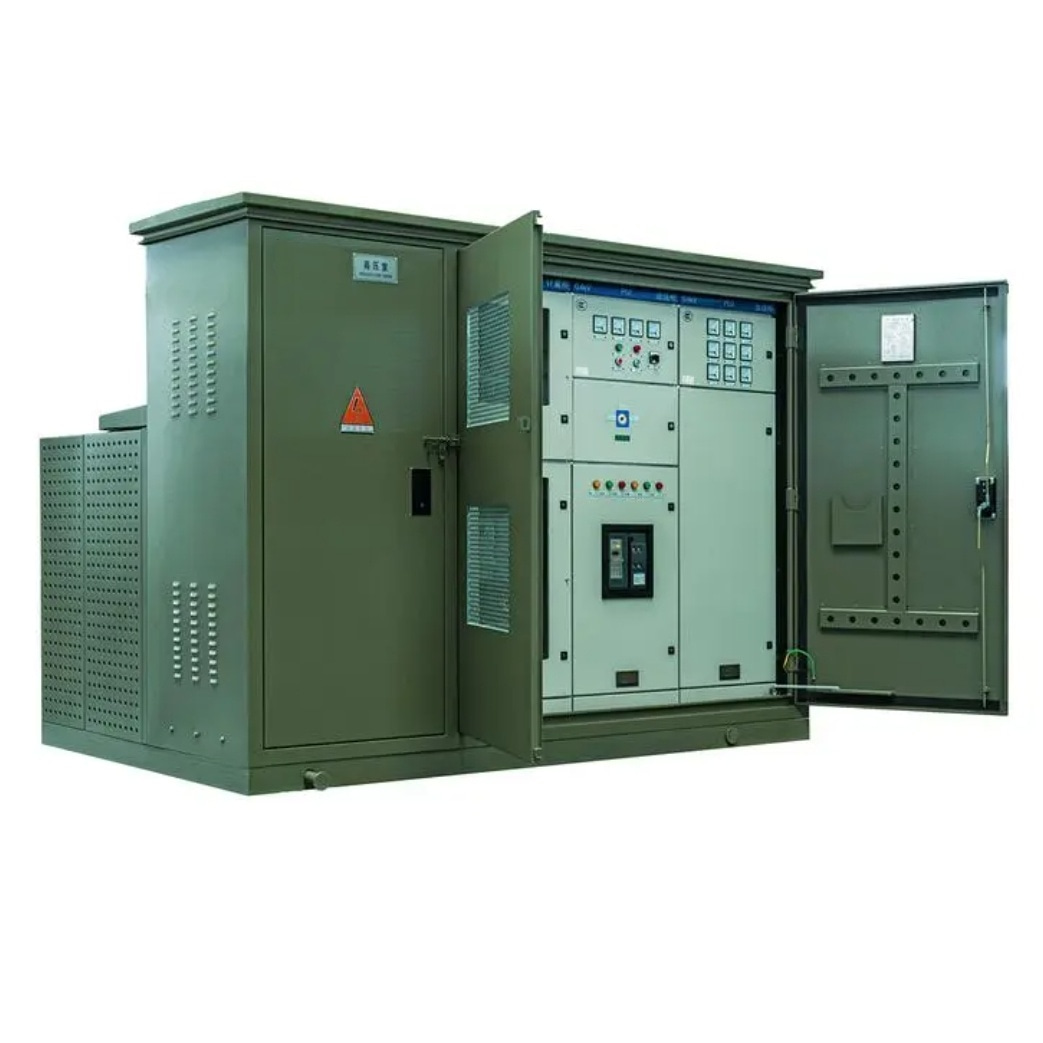

5-20DaysZGS-12 US Type Package Transformer
US Type Package Transformers are widely used in urban power grid renovation,residential areas and other public places,as well as indoor and outdoor places such as factories,mines,hotels,airports,railways,docks and highways.Standards: G8/T17467-2010 high voltage/low voltage prefabricated substation: DLT537-93 Technical conditions for ordering 6-35kV box substation.
Technical parameter
|
No. |
Item |
Unit |
Parameter |
|
1 |
Rated voltage |
kV |
10/0.4(HV/LV) |
|
2 |
Max working voltage |
kV |
12(HV side) |
|
3 |
Rated frequency |
Hz |
50 |
|
4 |
Rated capacity |
kVA |
50-800 |
|
5 |
1min power frequency withstand voltage |
k |
35 |
|
6 |
Lightning impulse voltage |
kV |
75 |
|
7 |
Cooling method |
|
ONAN |
|
8 |
High voltage backup fuse breaking current |
kA |
50 |
|
9 |
Plug-in fuse breaking current |
kA |
25 |
|
10 |
Ambient temperature |
℃ |
-35~+40 |
|
11 |
Allowable temperature rise of coil |
℃ |
65 |
|
12 |
No load tap changing |
|
±5% or ±2*2.5% |
|
13 |
Noise level |
db |
50 |
|
14 |
Protection level |
|
IP43 |
Ordering Notice
> Product operating location and special requirement;
> Product ordering drawings should be provided, including wiring diagrams, and transformer capacity, main component model and specification,distribution branch circuits and capacity should also be provided;
> When it is necessary to configure electric energy metering and reactive power automatic compensation device,the requirement for metering watt hour meter and transformer configuration should be provided,with the capacity of compensation capacitor;
> Requirement for surface treatment of the product should be specified;
> Please specify the terminal type or ring network type when ordering the combined transformer.
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
This product series is widely used in urban power grid renovation,residential areas,high-rise buildings,factories and mines,hotels, shopping malls,airports,railways,oil fields,docks,highways,temporary electricity factories and other indoor and outdoor places.
Details
Three-phase dry-type transformer is a low loss transformer,suitable for wind power, photovoltaic power generation, electric vehicle substations, and combination substations.
Details
This product series is widely used in urban power grid renovation,residential areas and other public places,as well as indoor and outdoor places such as factories,mines,hotels,airports,railways,docks and highways.Standards: G8/T17467-2010 high voltage/low voltage prefabricated substation: DLT537-93 Technical conditions for ordering 6-35kV box substation.
Details
Unique R-method high-voltage connection, safe, reliable, convenient, and environmentally friendly. Widely used in 35kV power transformation and distribution fields such as photovoltaics and wind power.
Details
New energy integrated photovoltaic prefabricated box substation, european type integrated substation.The european integrated substation includes oil-immersed transformer, high voltage room, communication power cabinet, inverter room and high voltage room.
Details
The unit substation (switching station) and station terminal are intelligent complete set of equipment launched in response to the requirement of the National Grid Standard Technical Standards for Power Distribution Primary and Secondary Equipment. It integrates advanced technologies such as electromagnetic voltage,current transformer,energy metering module and high-speed fault transient waveform.
Details
Pad mounted transformer, OEM for clients according to clients' drawing.
