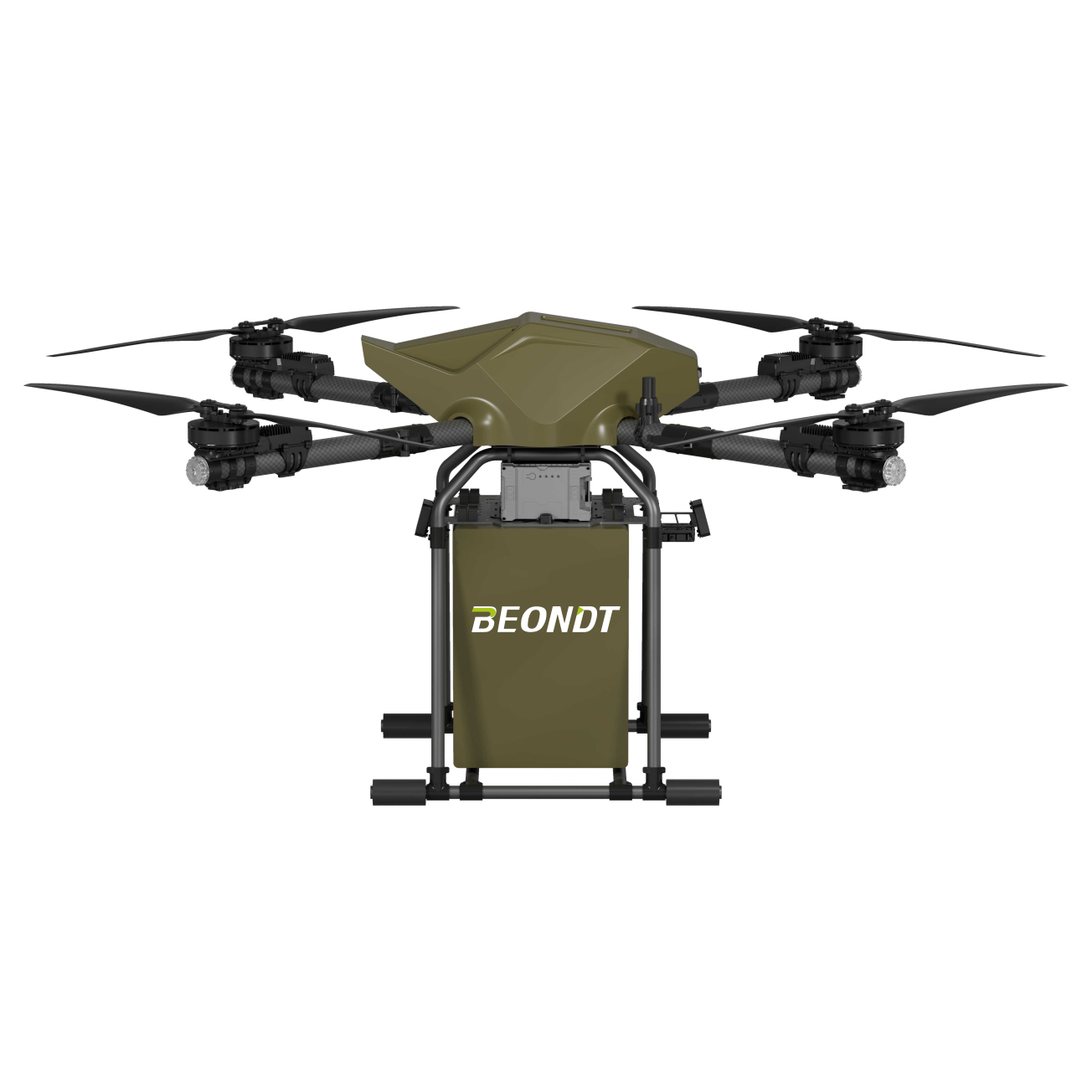

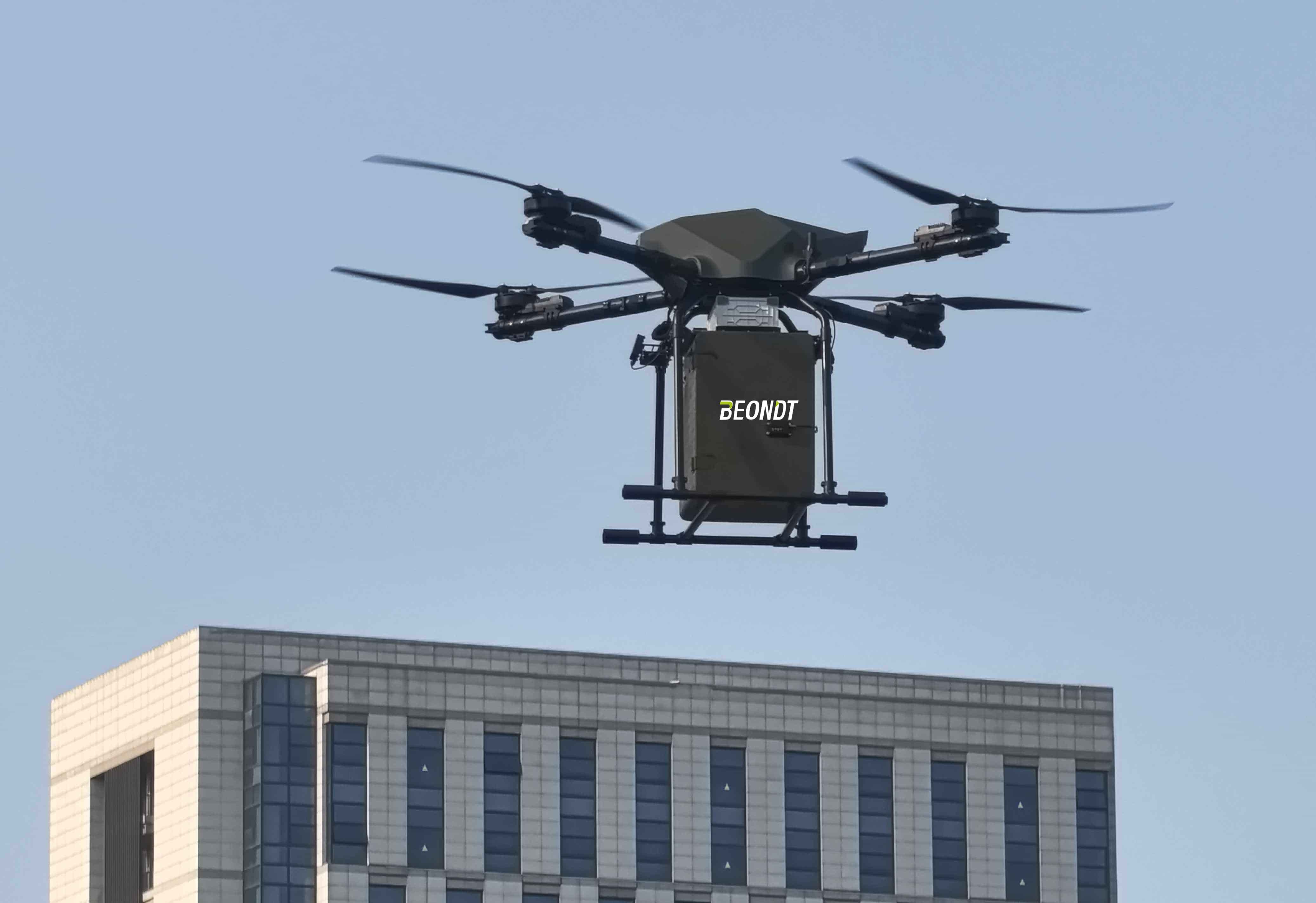

BEONDT D20 delivery drone support one-button takeoff and landing.Autonomous flight according to the change of terrain.Share flight data.Real-time monitoring of pesticide dose.Real-time accurate return of battery data.Support autonomous obstacle avoidance.
Item No :
D20Order(MOQ) :
5Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :
5-20daysD20 Transport Logistics Delivery Drone
Drone express delivery is the use of unmanned low-altitude aircraft controlled by radio remote control equipment and self-contained program control devices to carry packages and automatically deliver them to the destination. Its advantages mainly lie in solving distribution problems in remote areas, improving distribution efficiency, and reducing labor costs.
The remote control distance of BEONT 20KG delivery drone to the ground is within 3Km based on the environment，to the air is within 15Km：
1.with built-in ultra-long-range strong winding digital map module, flight visualization and safer flight.
2.Built-in intelligent data transmission radio, greatly increase the remote control data transmission distance and stability.
3.Dual antenna;dual module design; phase-locked spread spectrum and frequency hopping technology imported from the United States; Can reach up to 10 kilometers;The drone will no longer be out of control.
4.Subversive use of Hall Rocker; Permanent magnet sensor; Military grade.
5.Bluetooth+wired dual connection, stable and unrestrained.
6.It can work continuously for 24 hours on a single charge.
7.Comprehensive certification;Meet the subsidy standard of the Ministry of export standard.
Parameters
Category |
Item |
Data |
Performance Description |
Complete Machine Module |
Body Design |
4-rotor modular |
Main material for the machine: 7075Aviation aluminum + carbon fiber; 4 axes large wheelbase folding design |
Total Weight |
30kg（Including battery） |
Including batteries |
|
Propeller size |
43inch | with exponential decrease in vibration generated during the flight of the aircraft, the airframe structure and longer motor life. |
|
Propeller material |
Carbon composite propellers |
Made of carbon fiber and imported nylon through mixed die-casting |
|
Numbers of Propellers |
4groups (8pcs) |
Wind speed under single propeller could be up to 16m/s with higher penetration power |
|
Body Dimension |
1650mm*1650mm*755mm | / | |
Folding dimension |
800mm*800mm*755mm | / | |
Operating temperature range |
-5～40℃ | / | |
Remote control module |
Remote controller |
12-channel dedicated all-in-one control |
The remote control distance to the ground is within 3Km based on the environment，to the air is within 15Km；1.with built-in ultra-long-range strong winding digital map module, flight visualization and safer flight. 2.Built-in intelligent data transmission radio, greatly increase the remote control data transmission distance and stability. 3.Dual antenna;dual module design; phase-locked spread spectrum and frequency hopping technology imported from the United States; Can reach up to 10 kilometers;The drone will no longer be out of control. 4.Subversive use of Hall Rocker; Permanent magnet sensor; Military grade. 5.Bluetooth+wired dual connection, stable and unrestrained. 6.It can work continuously for 24 hours on a single charge. 7.Comprehensive certification;Meet the subsidy standard of the Ministry of export standard. |
Line emission frequency |
2.4G Hz | Module integration mode (digital transmission + radio + Bluetooth + image transmission) |
|
Screen |
7.2 inch |
Touch LCD，resolution1920*1200，brightness1200cd/m2 |
|
Image transfer (FPV) |
HD image transfer + high light LED dual lamps |
According to environmental conditions, HD image transfer of 1.5Km could be realized to check the conditions in front of the aircraft with 8W dual LED lamps in real time |
|
Dynamic parameters |
Maximum output power of the motor |
≥6.3kw*4 | / |
Electric regulating working voltage |
≥51.8V | 14S High voltage operation mode.Reduce the overall current used by the equipment.Reduce the risk of using electronic equipment due to excessive current. |
|
Electric regulating Maximum continuous current |
150A*4 | Almost all electronic originals are imported products. |
|
Dynamic information feedback |
Information recording |
Electric regulation can record input and output information，can analyze the data better. |
|
Loading Box Flight Time |
Loading box capacity |
37L | / |
Flight time with full load |
12min | Flight time with 20 kg load | |
Flight time with no load |
29min | / | |
Flying control |
Intelligent control |
Fully autonomous flight |
One-button takeoff and landing.Autonomous flight according to the change of terrain. Share flight data.Real-time monitoring of pesticide dose.Real-time accurate return of battery data.Support autonomous obstacle avoidance. |
| RTK | RTK+GNSS Double redundancy |
RTK+GNSS Double redundancy system.Route can be more accurate；Optimize anti-magnetic interference technology to make flight safer; Algorithm optimization, faster access to RTK mode. |
|
obstacle avoidance |
autonomous obstacle avoidance |
Using front and rear millimeter wave radar to avoid obstacles. |
|
Cloud network |
Mobile APP |
√ | |
Power supply |
51.8v,28000mA,14S,Lithium polymer battery |
Intelligent battery：The coulomb meter principle is used to integrate cell multiplier performance curve and ambient temperature, and accurately calculate power based on battery aging.Fast charging is also possible at 65 ℃. |
|
Power supporting |
Charger |
2 charging ports,3000W;Maximum charging current:60A;Fully charging in about 17 minutes. |
|
Generator |
5000W High power generator;Rated voltage 230V;Single cylinder、Four stroke、Forced air cooling;Transistor ignition;Wheeled transport;Efficient and fast. |
||
Cooler |
Industry-first semiconductor 'refrigerator';Automatic start;It can quickly transfer the heat inside the cell to the heat sink;Realize continuous and fast charging at high temperature;Improve circulation efficiency. |
||
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
BEONDT D20 delivery drone support one-button takeoff and landing.Autonomous flight according to the change of terrain.Share flight data.Real-time monitoring of pesticide dose.Real-time accurate return of battery data.Support autonomous obstacle avoidance.
