Can clean exterior glass, photovoltaic panels and irrigation at high altitude.OEM and ODM services
Item No :
C20LOrder(MOQ) :
5Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :

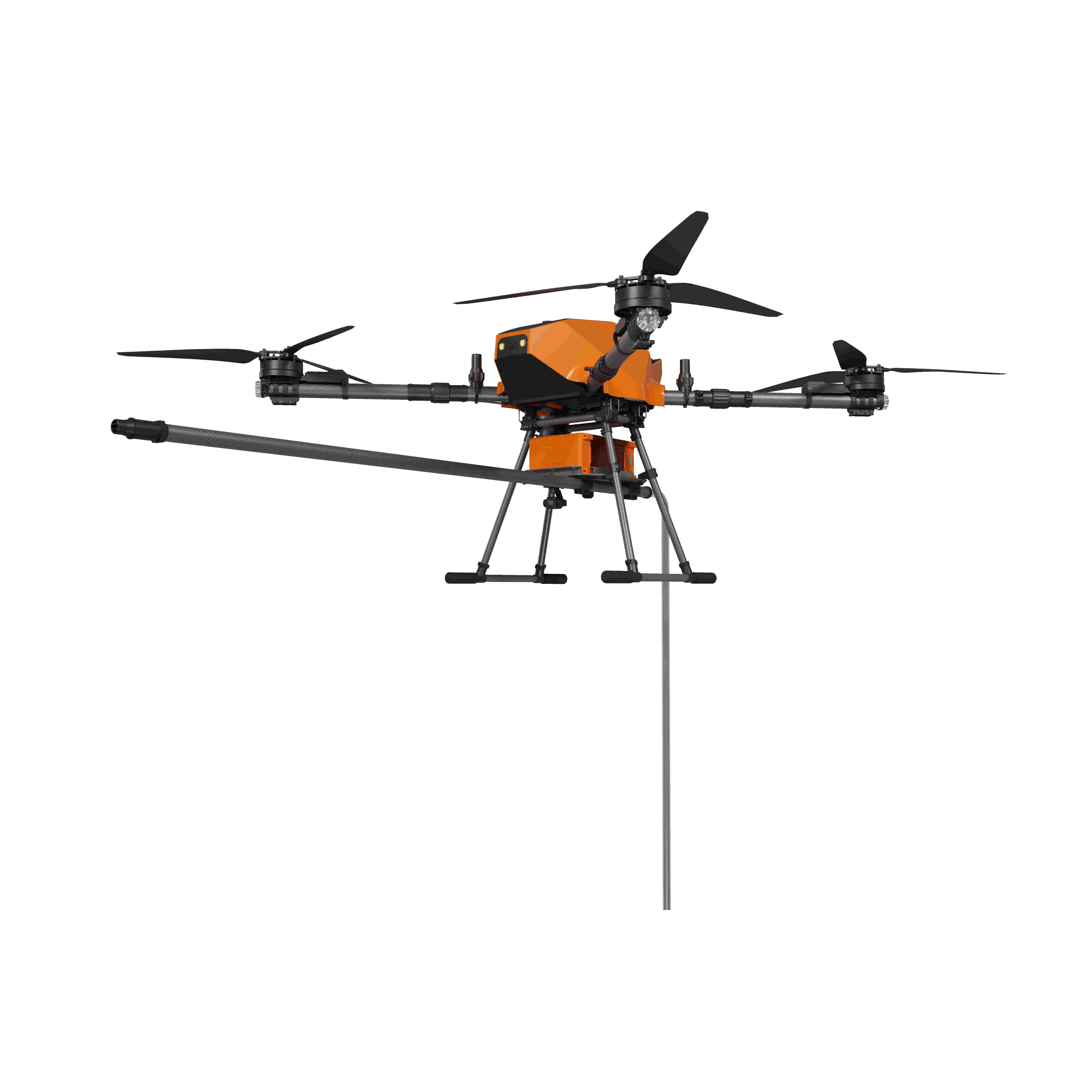

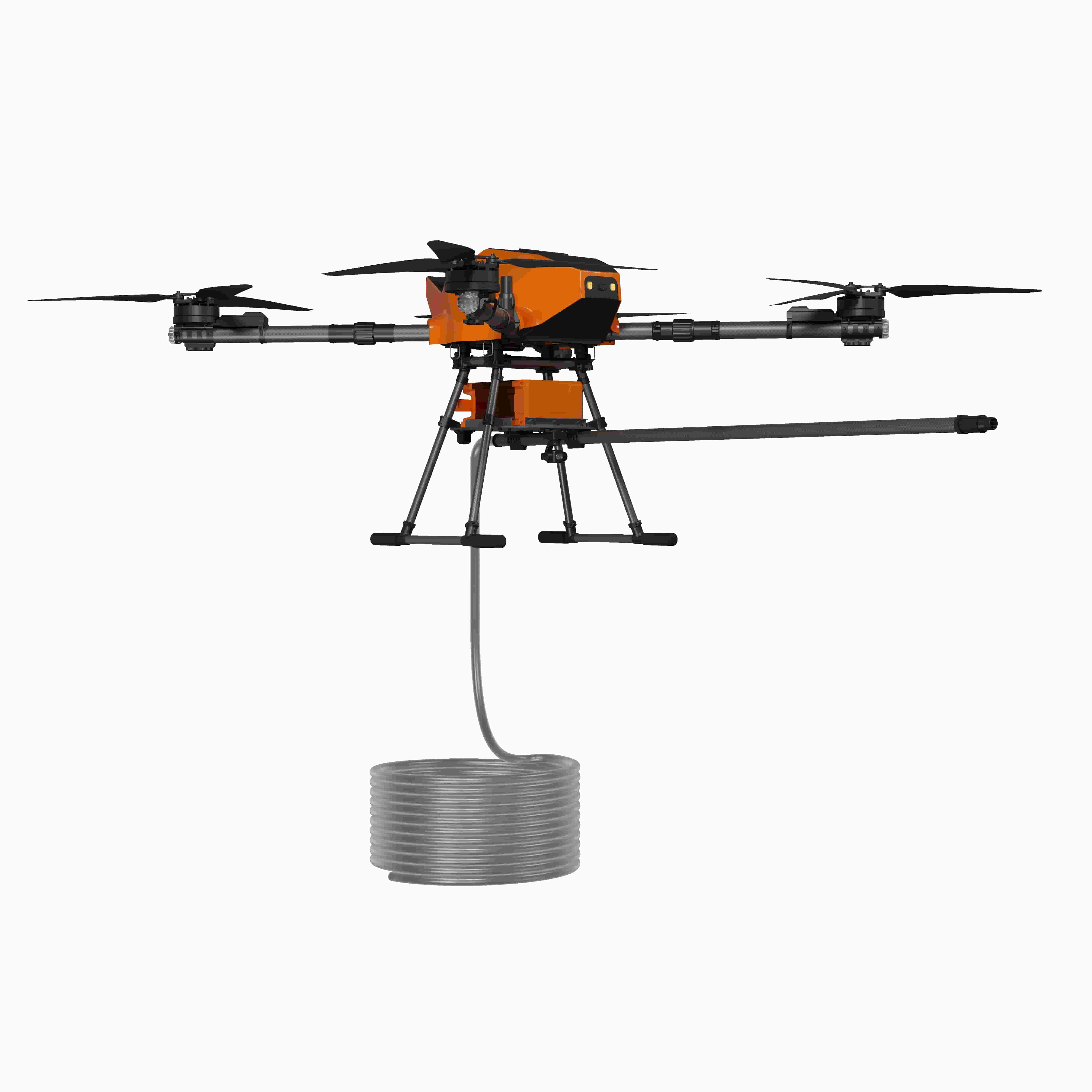

5-20daysC20L Exterior Glass Cleaning Drone At High Altitude
1. Basic Concepts
Exterior glass cleaning drones are intelligent devices that use high-pressure water or detergent to clean the glass surface by installing cleaning equipment (such as water sprayers or scrubbers, etc.) on drones. It is mainly composed of drone platforms, cleaning equipment, control systems, etc., and can perform efficient and safe cleaning operations on the exterior glass of buildings in high-altitude environments.
2. Working Principle
Drone platform: Provides flight stability and power support to ensure that the drone can fly according to the preset route and altitude.
Cleaning equipment: Installed on the drone, it flushes and cleans the glass surface with high-pressure water or detergent. Some drones are also equipped with flexible brush heads or scrubbers to further improve the cleaning effect.
Control system: includes a ground control station and a flight control system on the drone. The ground control station is used to plan the flight route, monitor the flight status and send control instructions; the flight control system is responsible for receiving instructions, controlling the flight attitude and speed of the drone, etc.
3. Advantages
Improve cleaning efficiency: drones can quickly cover large areas of exterior glass, which can significantly improve cleaning efficiency compared to traditional manual cleaning methods.
Reduce safety risks: Traditional manual high-altitude cleaning operations have high safety risks, while drone cleaning can avoid the safety hazards caused by high-altitude operations and ensure the life safety of operators.
Improve cleaning quality: Drones can be equipped with high-definition cameras and advanced sensors to view the cleaning situation in real time, and automatically adjust the cleaning method and intensity according to the material and pollution level of the exterior glass to ensure the cleaning effect.
Reduce labor costs: Drone cleaning reduces dependence on labor and reduces labor costs. At the same time, drones can work continuously for a long time, reducing the problem of reduced cleaning quality due to human fatigue.
Environmental protection and energy saving: The detergent and water resources used in the drone cleaning process are relatively small, which is conducive to environmental protection and energy saving. In addition, since drones can complete cleaning tasks quickly, energy waste is also reduced.
4. Parameter
| Overall parameters | Aircraft design | 4 rotor modular | Main materials of the whole machine: 7075 aviation aluminum + carbon fiber; 4-axis large wheelbase folding design |
| Mass of the whole machine, Kg | 23.5 | Including battery equipment | |
| Propeller diameter, mm | 840 | 3 folding propellers, the vibration generated during the flight of the aircraft is reduced exponentially, which greatly reduces the failure of the control hardware caused by the vibration of the aircraft, making the flight safer and more reliable, and the body structure and motor have a longer service life. If an accident occurs, a single piece can be replaced to reduce maintenance costs. | |
| Propeller material | Carbon composite propeller | Made of carbon fiber and imported nylon mixed die-casting | |
| Number of propellers | 4 sets (12 pieces) | The wind force under a single propeller reaches 16m/s, with stronger penetration | |
| Dimensions of the whole machine (length x width x height) | 1250*1250*650mm | The distance between two adjacent motors | |
| Dimensions when folded (length x width x height) | 691*670*650mm | The volume is reduced by 69% after folding; | |
| Operating temperature range, °C | -5～40 | ||
| Remote control module | Remote controller | 9 channels, integrated control for plant protection machines; | Depending on the environment, the remote control distance for the ground is 3km, and the remote control distance for the air is 15km; 1. Built-in ultra-long-distance strong diffraction and low-latency digital image transmission makes the flight visual and safe. 2. Built-in intelligent digital transmission radio greatly increases the remote control data transmission distance and stability. 3. Dual antenna and dual module design, imported phase-locked spread spectrum frequency hopping technology from the United States, can reach up to 10 kilometers, so that the plant protection machine says goodbye to out of control; 4. Subversive use of Hall rocker, permanent magnet sensor, military grade; 5. Equipped with controllable brightness camera, clearly visible in backlight, equipped with 8W high-light efficiency night navigation light, clearly visible at night. 6. Bluetooth connection + wired dual connection, stable and unrestrained. 7. It can work continuously for 24 hours on a single charge and can operate all-weather. 8. Legal and healthy 100mw power, fully certified, meeting the subsidy standards and export standards of the Ministry of Agriculture. |
| Wireless transmission frequency, Hz | 2.4G | Module integration (data transmission + radio + Bluetooth + image transmission) | |
| Battery, mAh | 4000 | Can work continuously for 8-10 hours | |
| Image transmission (FPV) | HD image transmission + high light LED dual lights | High-definition image transmission up to 1.5Km depending on the environment, with 8W dual LED lights to view the aircraft's front status in real time | |
| Power system | Total volume of battery compartment | 247*191*138mm | Plug-and-play battery compartment, convenient and fast without bundling |
| Full load current consumption, A | 120A | ||
| Maximum output power of motor | ≥2.5kw*4 | Uniaxial maximum pulling force 22Kg | |
| Continuous output power of motor | ≥2.2KW*4 | This output power can meet the task requirements | |
| ESC working voltage, V | ≥51.8V | 14S high voltage working mode; reduce the overall current used by the equipment, and reduce the risk of excessive current in the use of electronic equipment. | |
| Maximum continuous current of ESC, A | ≥150A*4 | The ESC can support a maximum current resistance of 150A, and almost all electronic components of the ESC are imported products. | |
| Power information feedback | Information Records | The ESC can record input and output information for better data analysis | |
| Cleaning parameters | Height of cleaning from photovoltaic panel, m | 2-200 | It is recommended to adjust according to the spraying height within the visible range of the height. |
| Number of cleaning nozzles/efficiency | 2pcs | Using 2 high-pressure water pumps, the pressure at the nozzle reaches 4 MPa, which can achieve cross-sector cleaning, with a horizontal spray width of 2 meters, a vertical spray width of 0.5 meters, a cleaning area of 1 square meter/second, and a cleaning of 60 square meters/minute; the maximum flow output range is 5.2L/min, | |
| Number of pumps (brushless water pump), pcs | 2 | with a maximum flow rate of 7L/min | |
| Spraying flow rate, L/min | 2.4-5.2 | If the nozzle is replaced, the maximum flow rate can reach 7L/min | |
| Maximum water load, L (Kg) | 20Kg | Operation load 15-20Kg | |
| Operation speed, m/s | 1.0～10 | (Adjust according to different spraying tasks) | |
| Full-load flight time, min | 10.3 | Full load hovering | |
| No-load flight time, min | 24.6 | No load hovering | |
| Flight control | Intelligent control | Manual/autonomous flight | One-button takeoff and landing, fully autonomous planning operations, terrain-simulating flight, breakpoint endurance, flight data sharing, real-time control of drug dosage, real-time and accurate feedback of battery data, support for autonomous obstacle avoidance |
| RTK | RTK+GNSS dual redundancy | GNSS+RTK dual redundant system, more accurate routes; optimized anti-magnetic interference technology, safer flight; algorithm optimization, faster entry into RTK mode. | |
| Cloud network | Mobile APP | Yes | |
| Power package | Power supply | 51.8v, 14S, 20000amh lithium polymer battery, 1036WH; | Smart battery: Using the coulomb meter principle, integrating the cell rate performance curve, ambient temperature, and battery aging status for accurate power calculation. |
| Charger | Dual channel, 1 to 2 | Dual-channel 2400W, charging current 25-28A, fully charged in about 15-20 minutes; |
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
