EMA1000 EMA Thickness gauge

EMA1000 EMA Thickness gauge

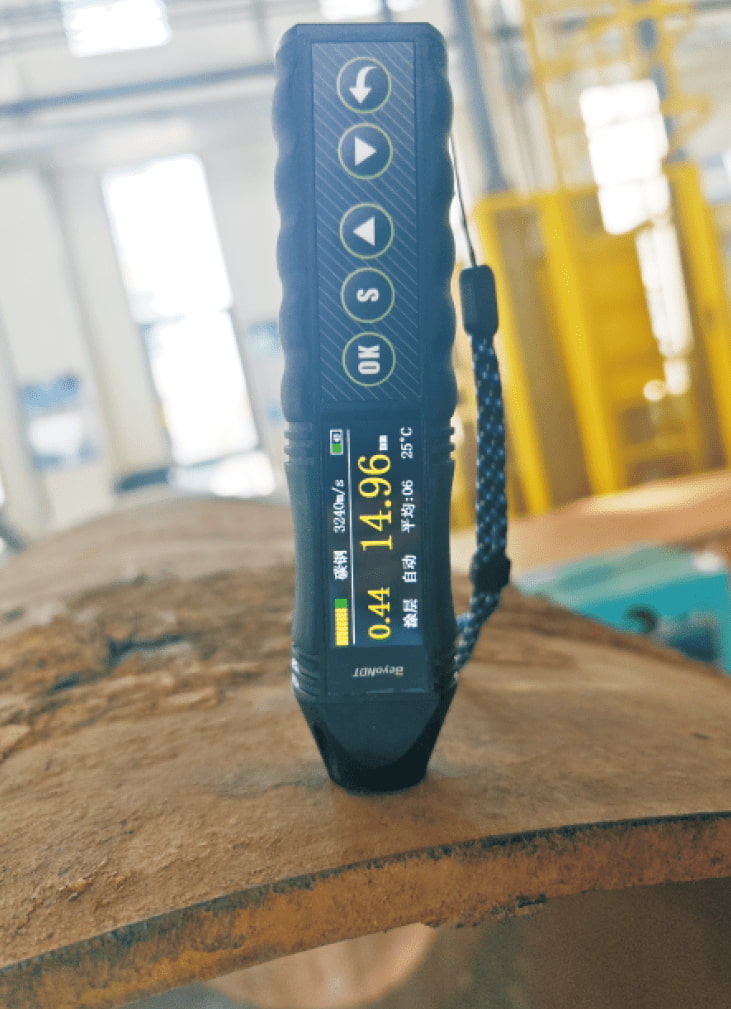

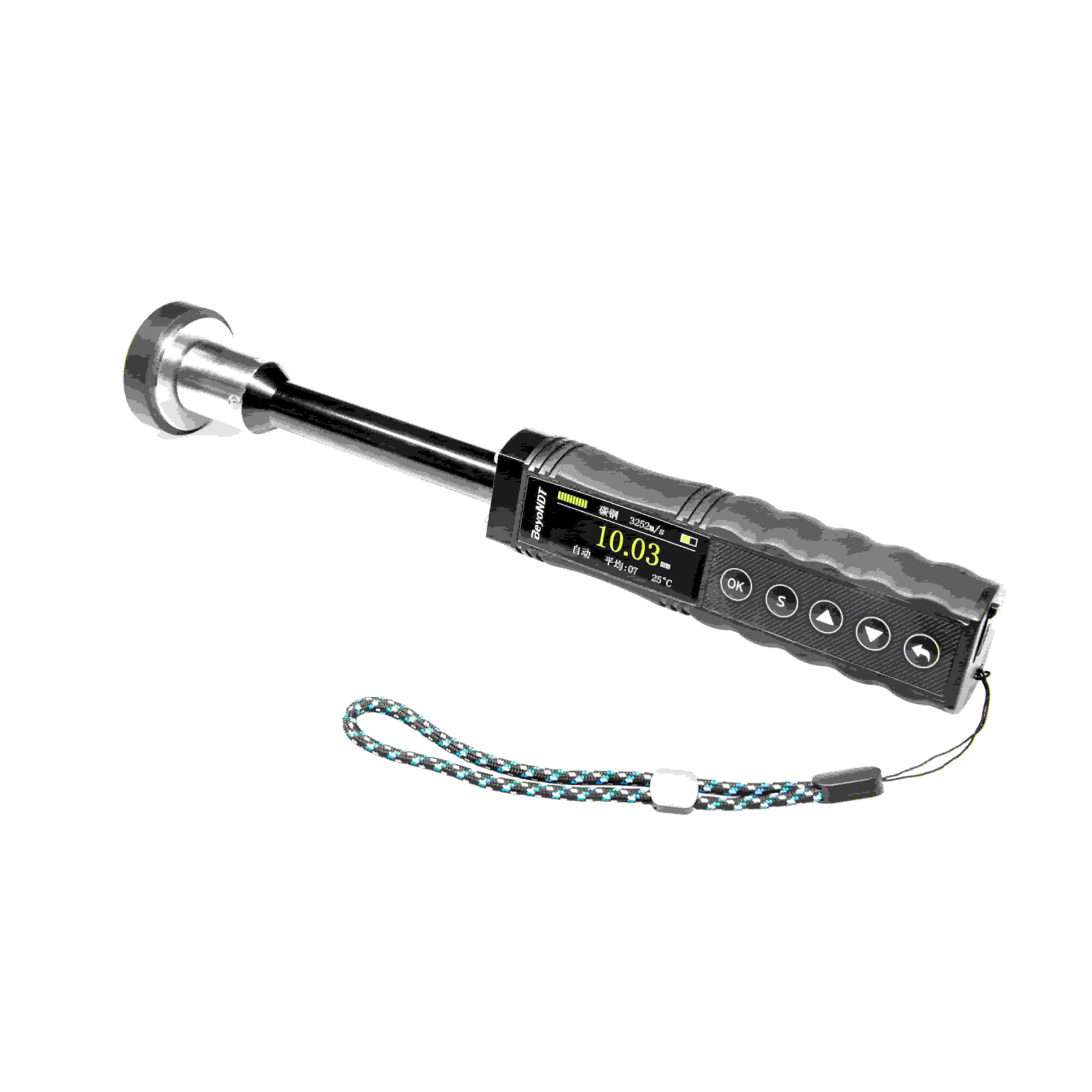

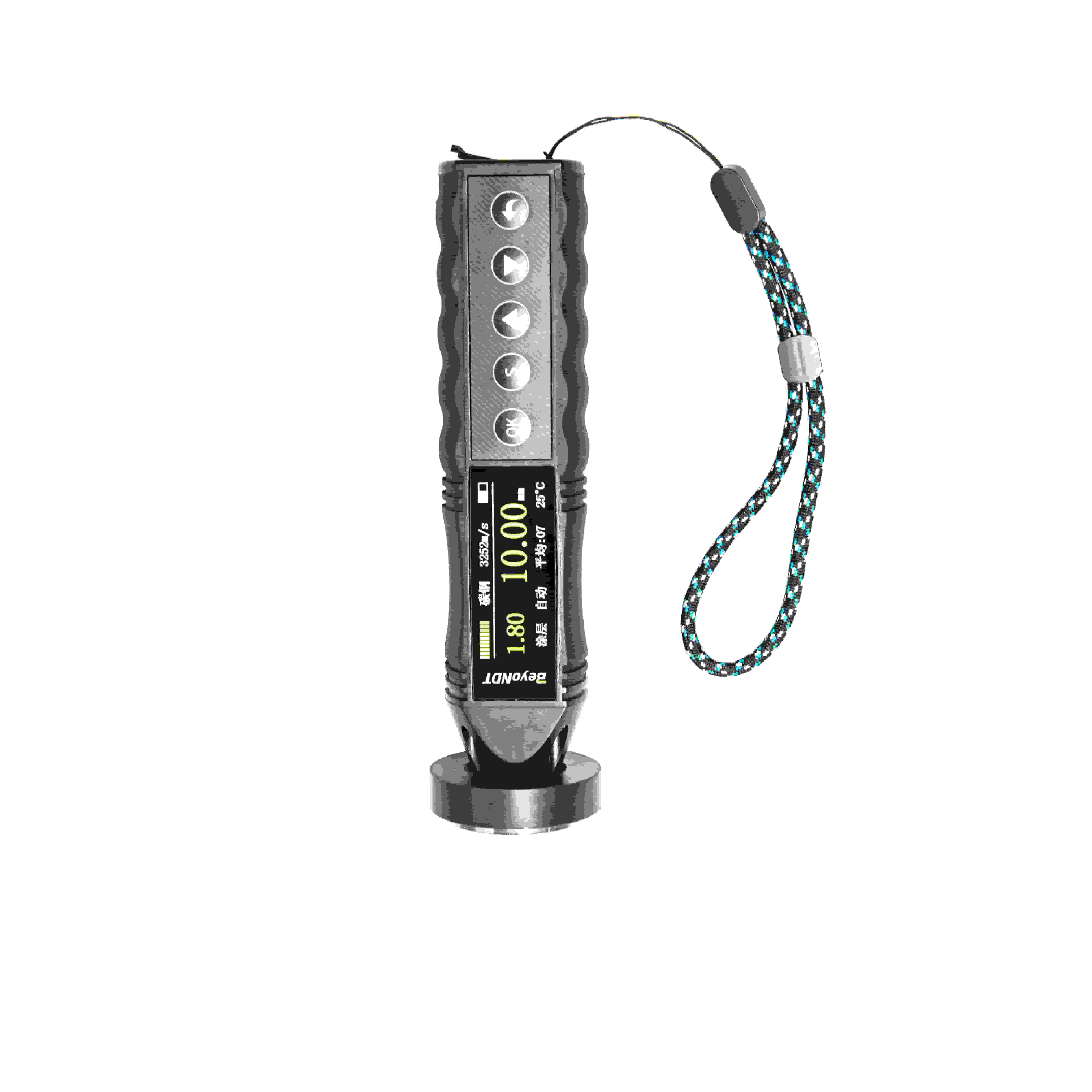

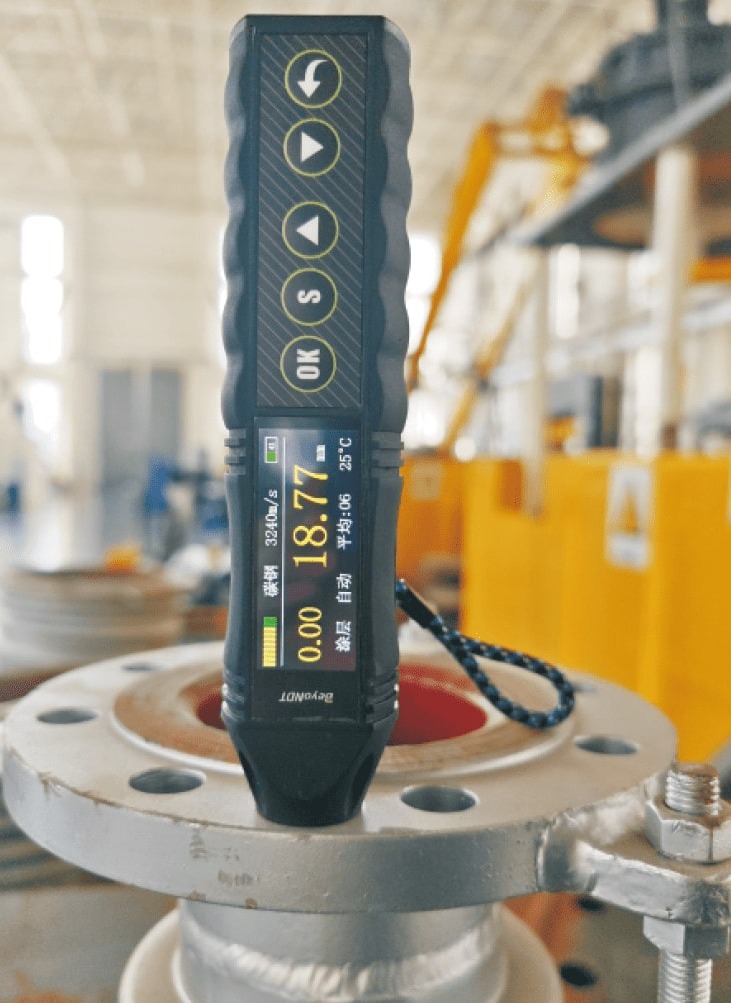

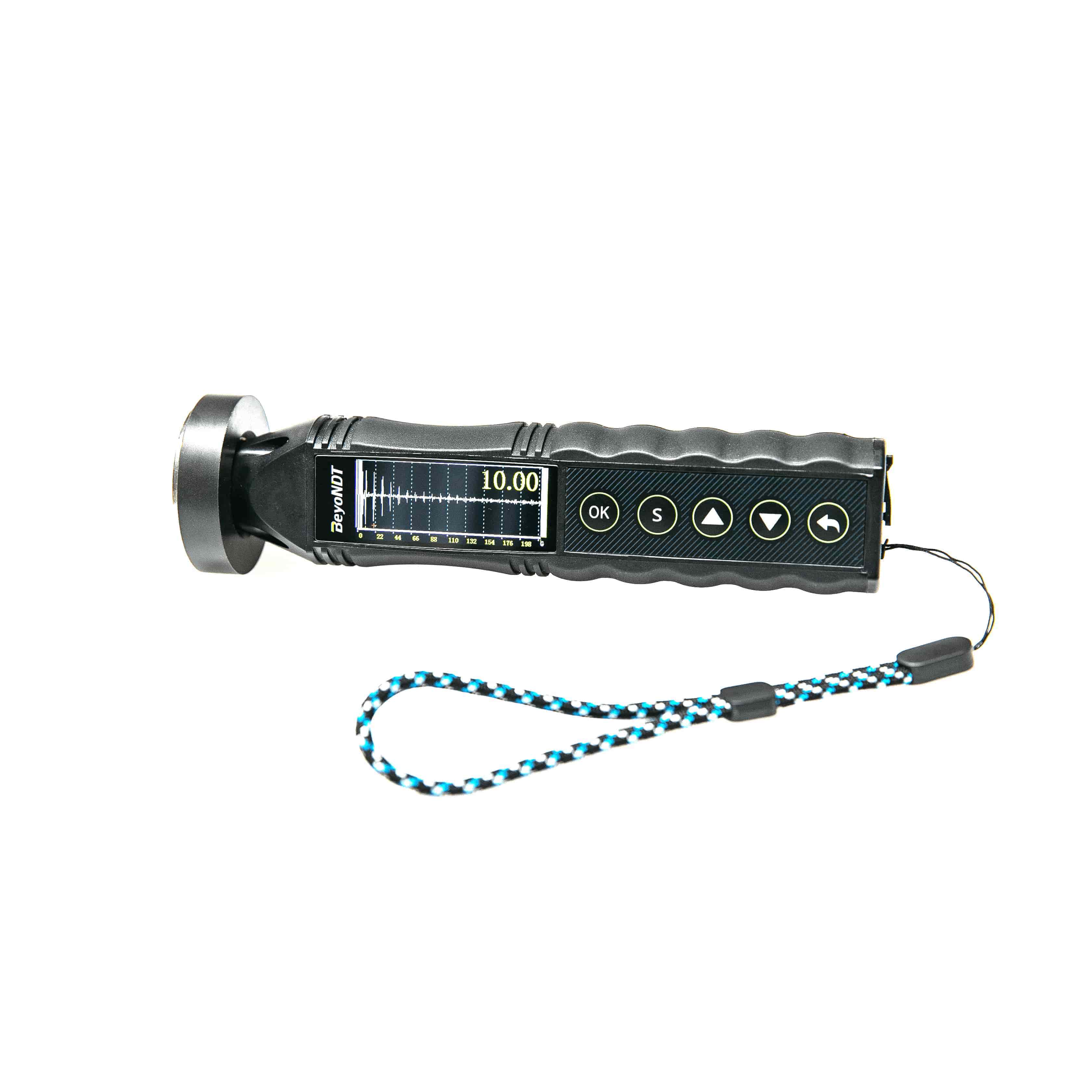

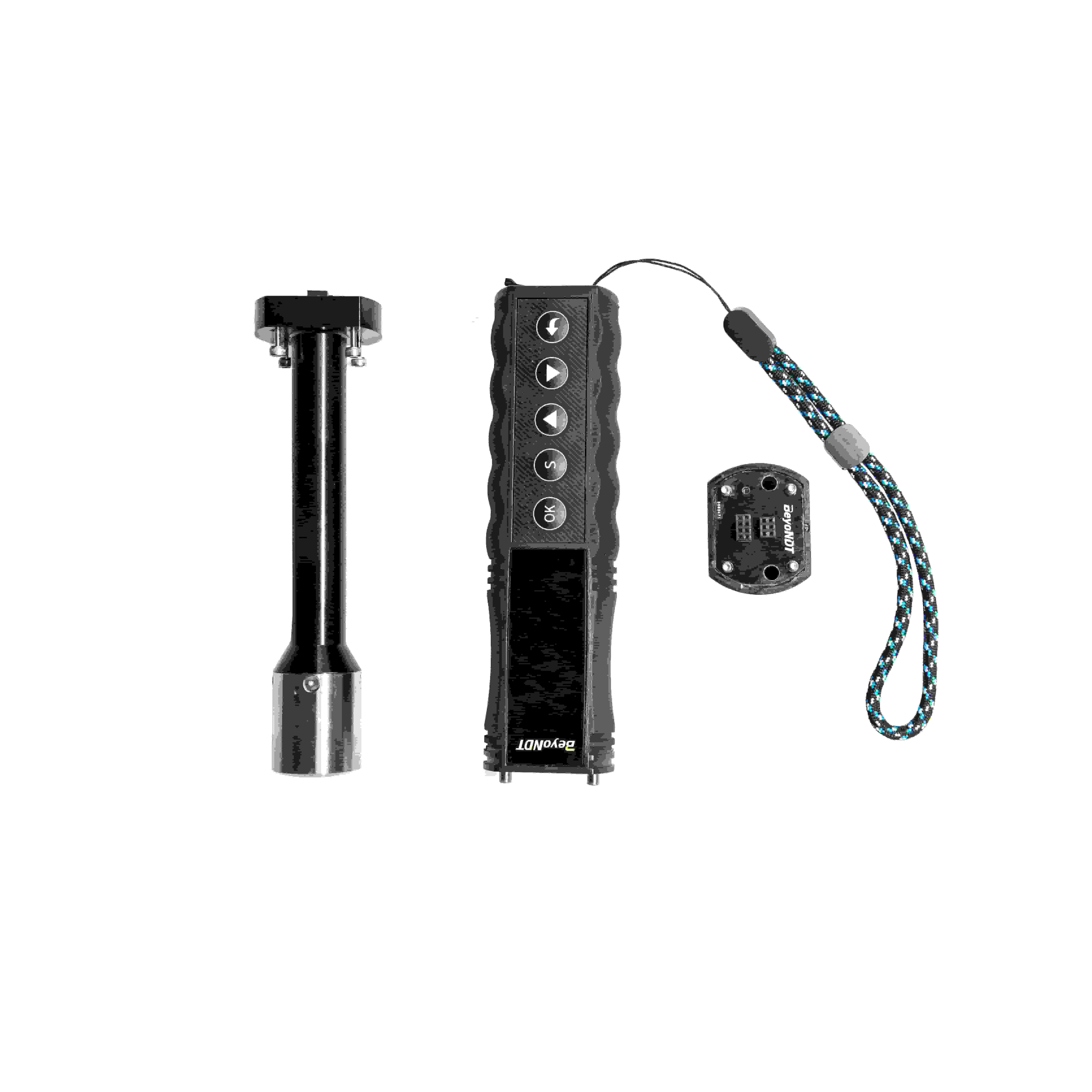

EMA1000 High-temperature EMA ultrasonic thickness gauge. This ultrasonic thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals.

  • Item No :

    EMA1000
  • Order(MOQ) :

    1
  • Payment :

    T/T
  • Product Origin :

    CHINA
  • Color :

    Black/Customized
  • Shipping Port :

    SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.
  • Lead Time :

    5-30days

EMA1000 EMA(electromagnetic acoustic) thickness gauge.

EMA thickness gauge is specially developed for measuring steel pipes, rolled plates, bars, and other products made of steel, aluminum, and other metals. The working gap between the sensor and the metal can be lifted up to 4mm. The operation of electromagnetic ultrasonic high-temperature thickness gauge does not require pre cleaning of the surface or contact with liquid. The gap can be dirt, rust, salt deposits, or other non-conductive coatings (such as paint, varnish, enamel, plastic, etc.). In addition to measuring the thickness of metals, EMA1000 can also measure the thickness of non-conductive coatings on metals.

Due to the use of special sensors, the EMA1000 thickness gauge can be used to measure the thickness of objects heated to 800 degrees Celsius. The EMA1000  electromagnetic acoustic(EMA) high-temperature thickness gauge has a color display screen protected by impact resistant glass.

The EMA1000 electromagnetic acoustic (EMA) thickness gauge can be connected to tablets, smartphones, or other devices based on the Android operating system. This can expand the functions of the thickness gauge, including A-scan, B-scan analysis; You can use gates, select thickness measurement modes, and signal processing parameters. The connection between EMA1000 electromagnetic ultrasonic high-temperature thickness gauge and tablet computer can be wireless connection using Bluetooth or wired connection using USB.

Technical Parameter

Range of metal thickness

1-250mm

Accuracy

0.01mm

Measurement error

0.08mm

Gap between the sensor and the detected workpiece

4mm

Measurable coating thickness

0-12mm

Speed range

1000-9999m/s, step 1m/s

Power supply

Lithium battery

working time

8 hours

Interface

Micro USB, Mini USB, Bluetooth

Temperature range of objects

-20~+800

Weight

230g









Note:

1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.

2. Customized production can be carried out according to the customer's drawings and technical parameters.EMA1000 Ultrasonic thickness gauge
