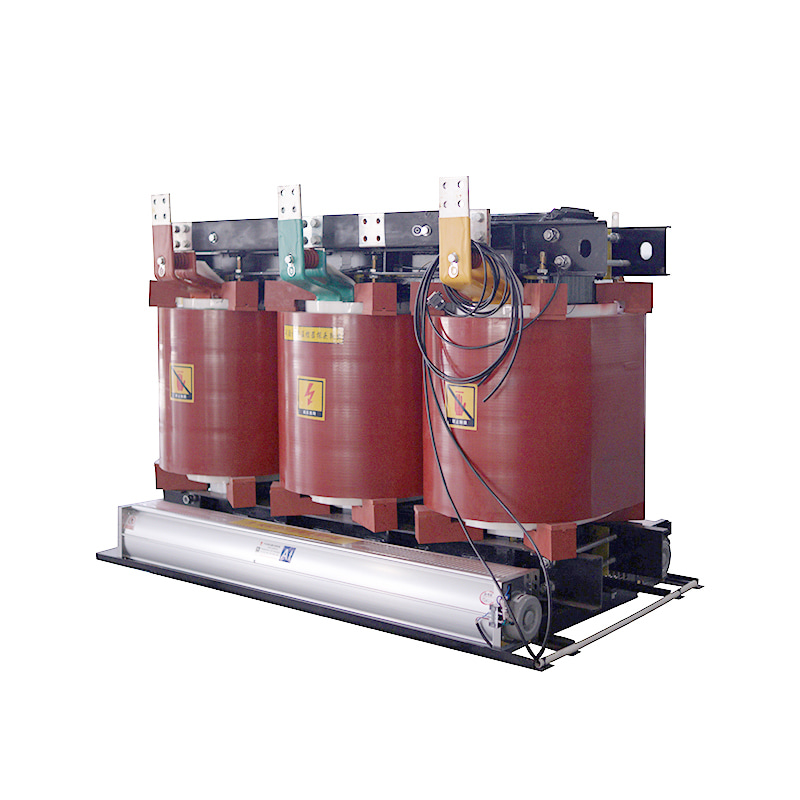

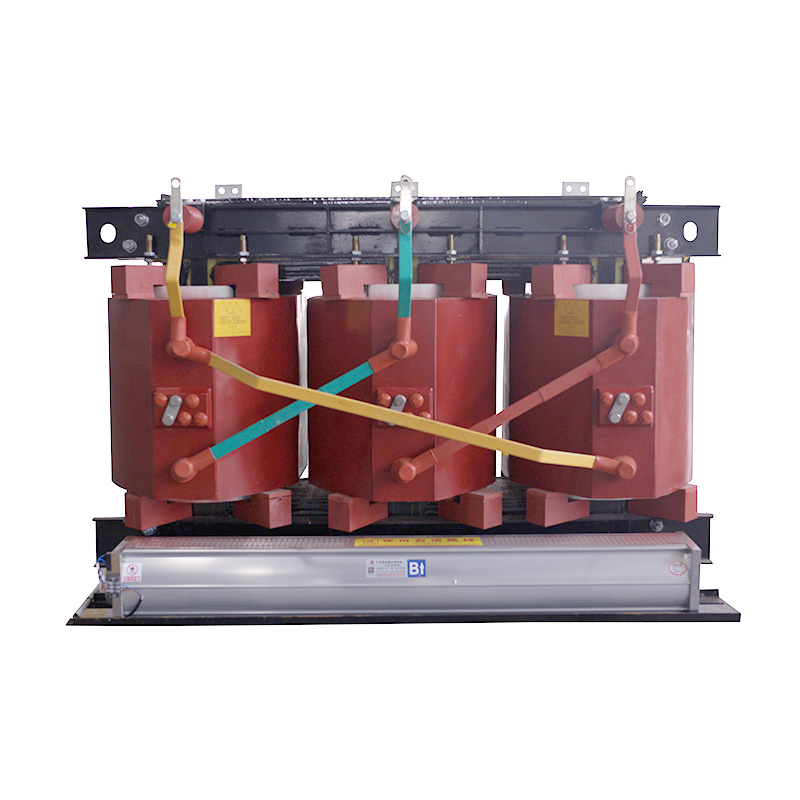

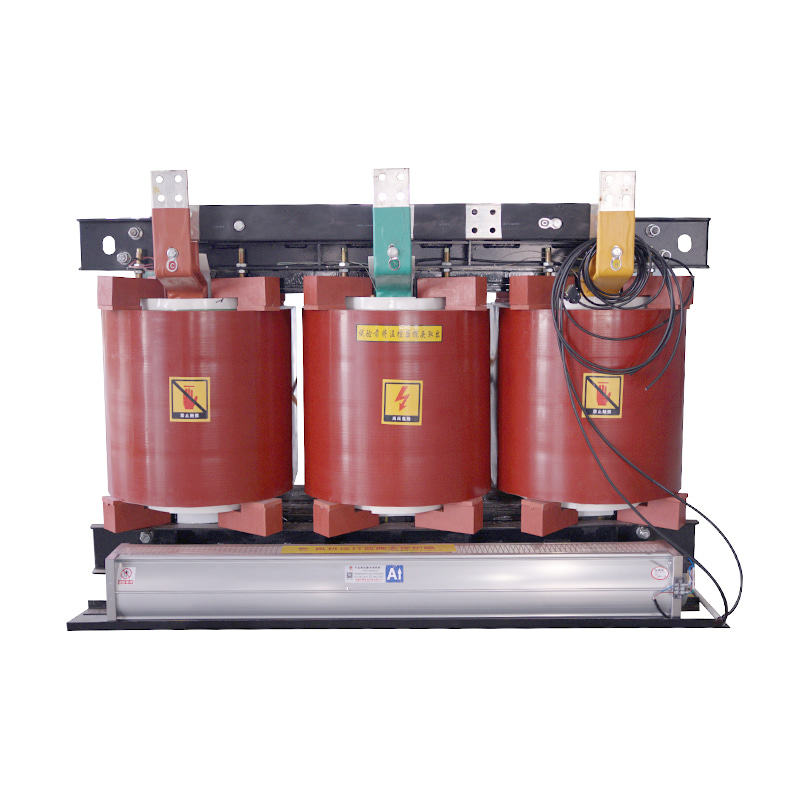

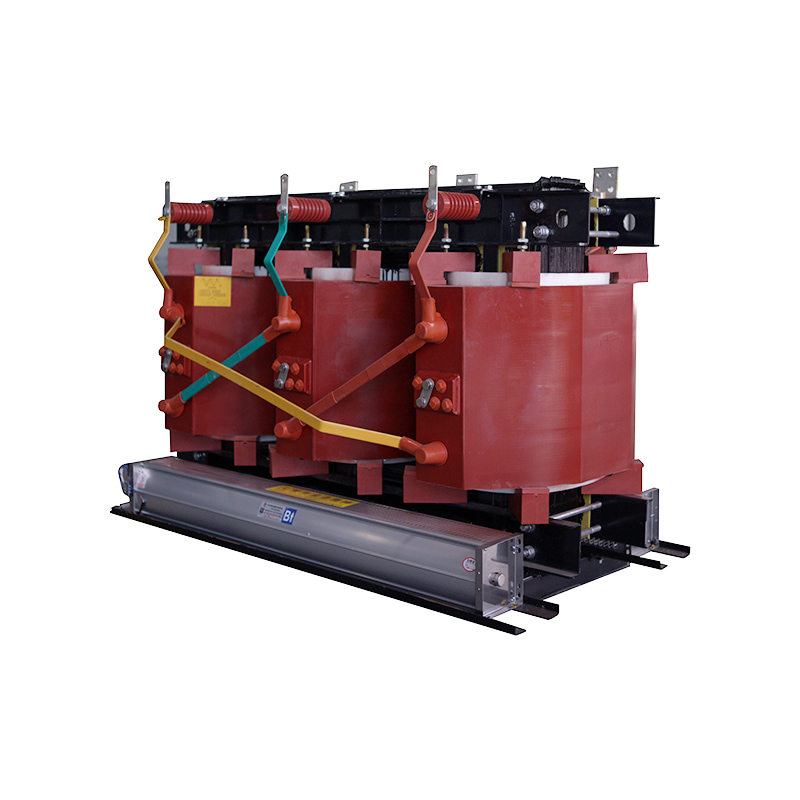

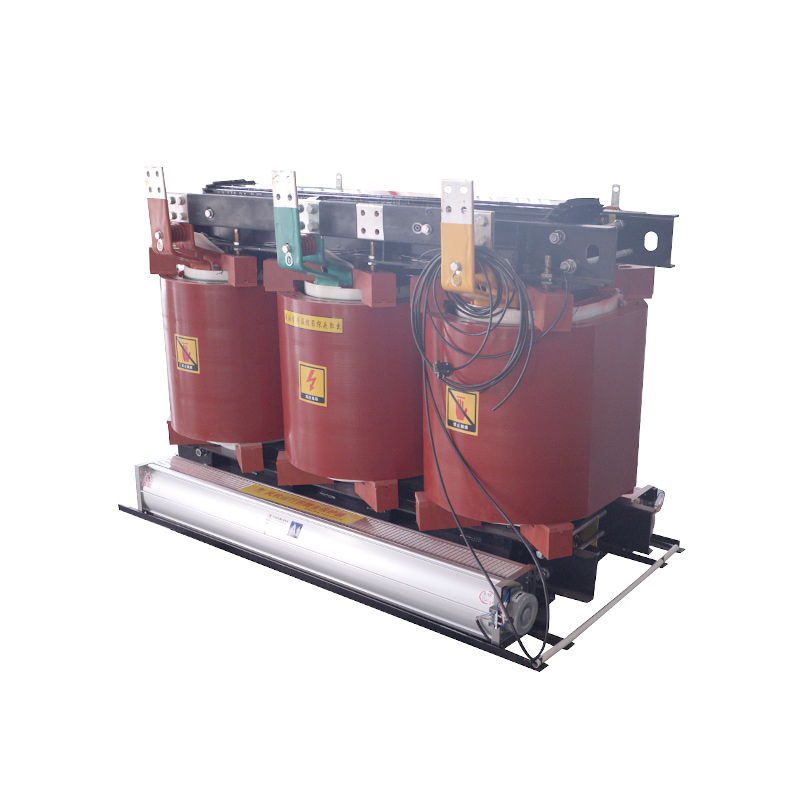

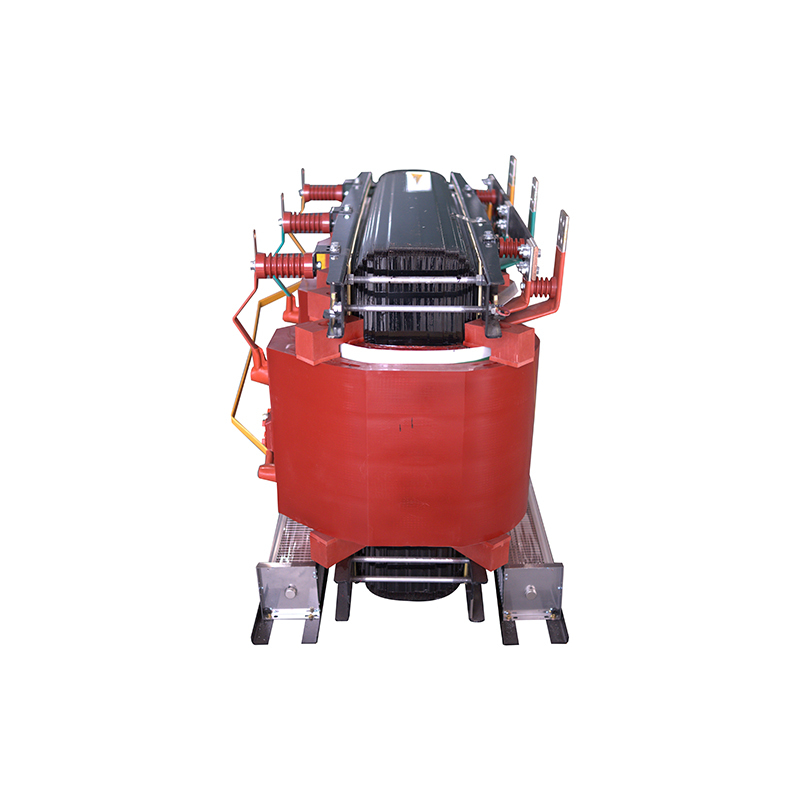

Three-phase dry-type transformer is a low loss transformer,suitable for wind power, photovoltaic power generation, electric vehicle substations, and combination substations.
Item No :
3256Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
Red/CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :
5-30 DaysOEM 30kVA-2500kVA Three-phase Dry-type Distribution Transformer
Three phase dry-type transfomers offers mechanically rigid units in a durable construction, adaptable to multiple industrial, commercial, manufacturing and medical requirements.Three phase dry-type transfomers are in conformity with standard of IEC726,GB/T10228-1997,with features of low lss, compact and light weight,low noise level,damp-proof,high mechanical strength,flame resisting, strong overoad ability and low partial discharge quality. They are applicable to power transmission and disrbution system,especially to heavy load centers and places with special fire protection requirements.
Working condition
> Installation height: altitude:≤3000m;
> Maximum temperature: +50°C ;
> Minimum temperature: -10°C(minimum storage temperature 30°C)
> Maximum daily average temperature: +30°C ;
> Maximum annual average temperature: +20°C ;
> According to user needs, transformers that exceed the above range of usage condition can be provided.
Technical Parameter

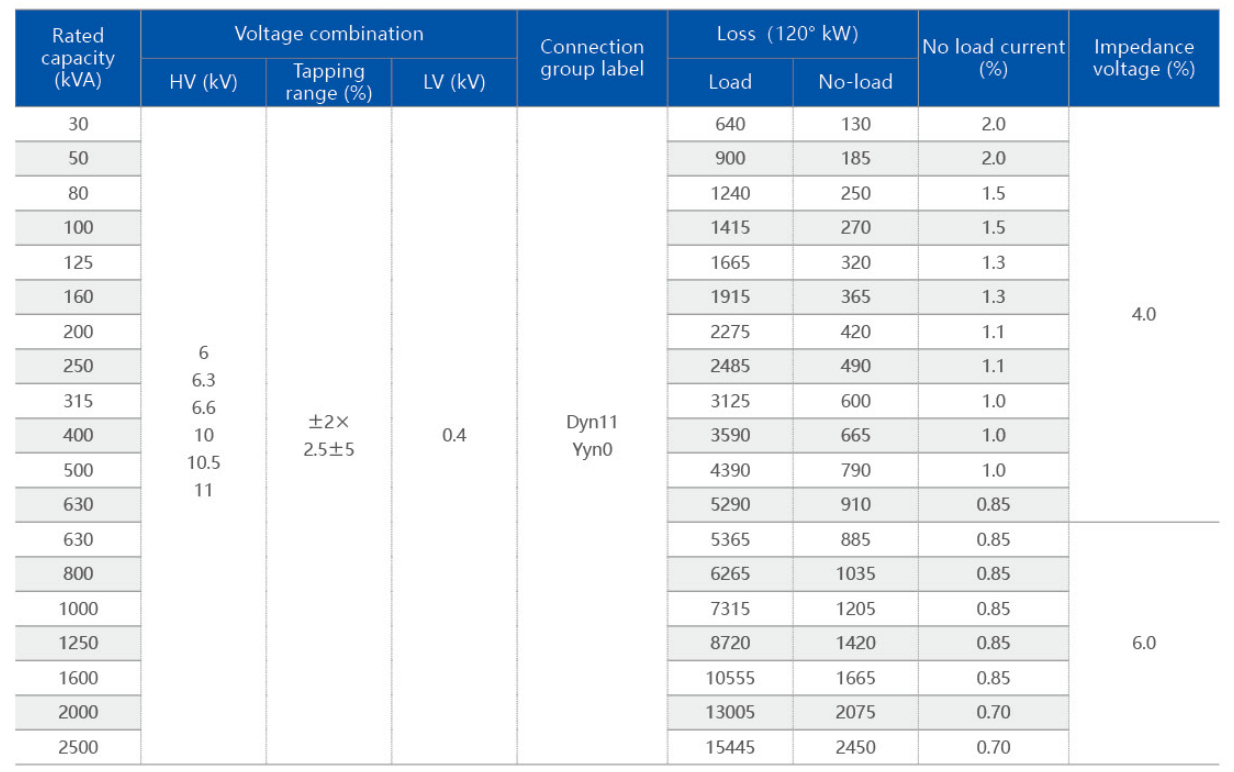

SCB13-(30-2500)/10 Three-phase dry type distribution transformer (Energy efficiency level:class Ill)

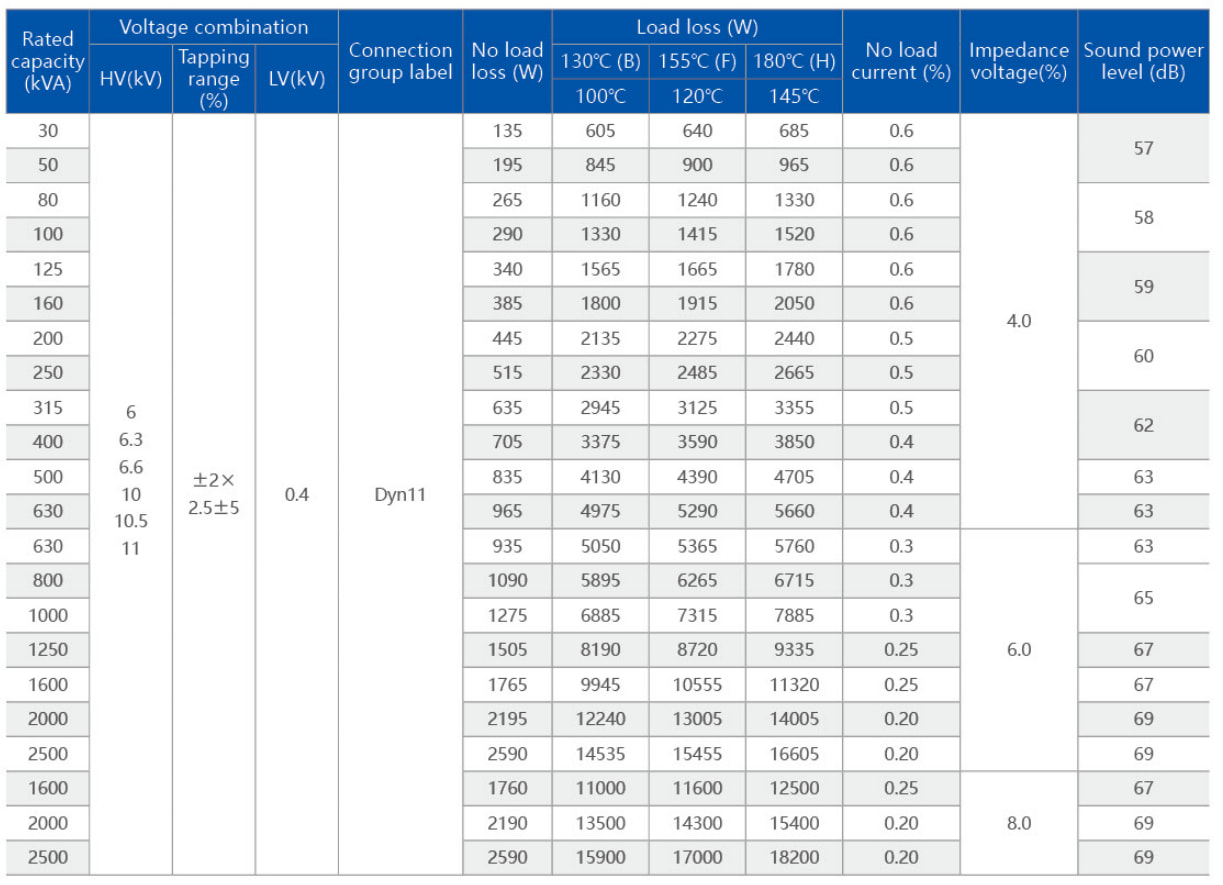

SCB14-(30-2500)/10 Three-phase dry type distribution transformer (Energy efficiency level:class II)

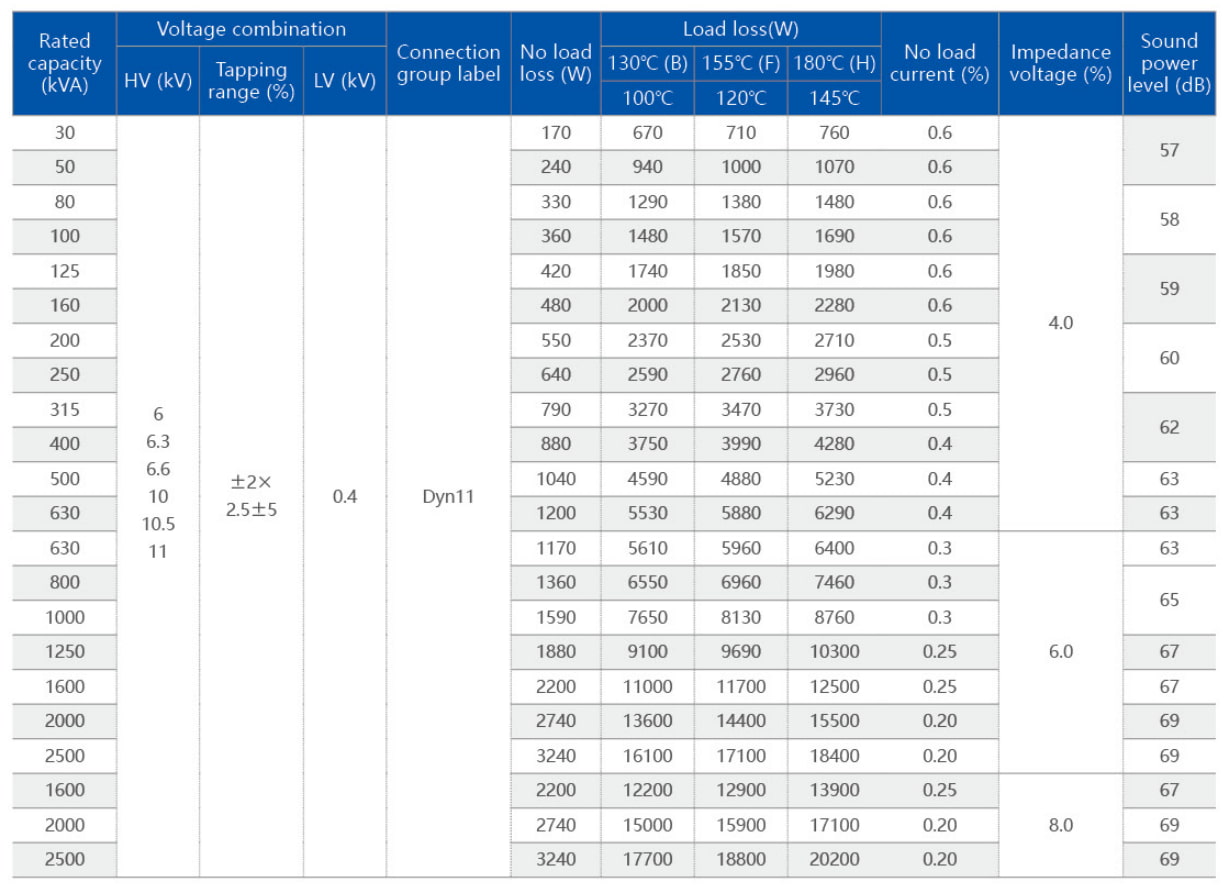

SCB18-(30-2500)/10 Three-phase dry type distribution transformer (Energy efficiency level:class I)
Note:
1. Due to the continuous updates of products, there may be some changes in the outline dimension and weight in the table. Please refer to the outline dimension diagram provided when placing an order.
2. Customized production can be carried out according to the customer's drawings and technical parameters.
Why choose BEYONDT?

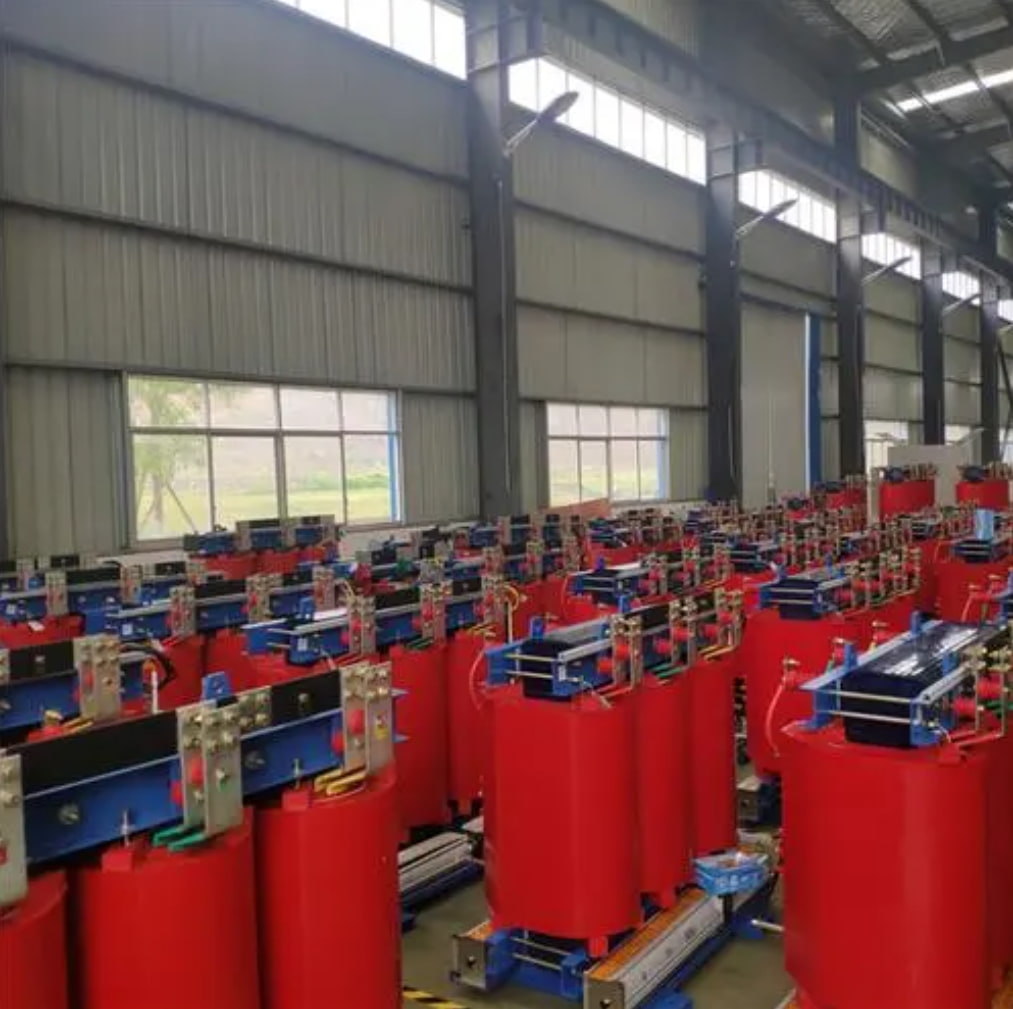

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
This product series is widely used in urban power grid renovation,residential areas,high-rise buildings,factories and mines,hotels, shopping malls,airports,railways,oil fields,docks,highways,temporary electricity factories and other indoor and outdoor places.
