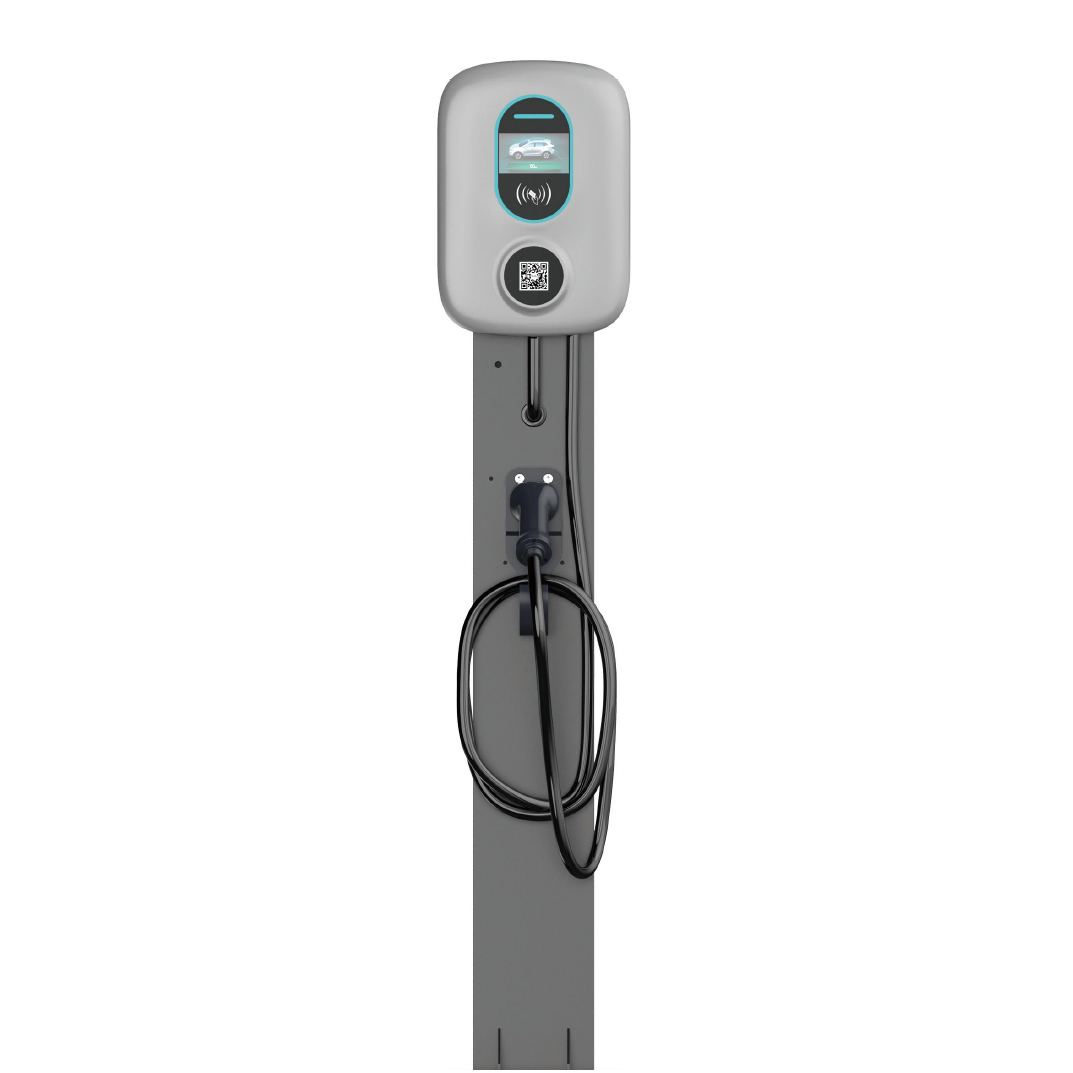

3.5kW/7kW Domestic Commercial Pedestal Mount Plastic AC EV Charger

3.5kW/7kW Domestic Commercial Pedestal Mount Plastic AC EV Charger

Smart Charge Connectivity is a standout feature of this charger. Through a mobile app, users can effortlessly manage charge times, schedule charging sessions, track history and usage, and control multiple stations. This smart technology brings convenience to your fingertips, allowing for efficient management of your EV charging needs.

  • Item No :

    3654
  • Order(MOQ) :

    1
  • Payment :

    T/T
  • Product Origin :

    CHINA
  • Color :

    Customized
  • Shipping Port :

    SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.
  • Lead Time :

    5-20 Days

3.5kW/7kW Domestic Commercial Pedestal Mount Plastic AC EV Charger

Built to cater to the ever-growing needs of the modern EV owner, this single-port pedestal stands as a testament to the combination of state-of-the-art design and robust functionality.

Constructed for convenience, the charger is designed as an open access charger, meaning it does not require any special cards or subscriptions. Whether it's for public installations or private properties, this ensures that any EV user can easily connect and charge their vehicle without a hitch.

Technical Parameter

Product name

AC 7kW/14kW

Input voltage (V)

220V15%

Rated frequency (Hz)

45-60

Output voltage (V)

22015%

Rated current (A)

16A/32A

Rated power (KW)

3.5kW/7kW

Number of Outputs

1

Charging way

Swipe cards/Scan the code

Networking mode

RJ45/4G/LoRa

Display&Touch-Screen Size

4.3 Inches Touch Screen/screen-free

Monitoring platform (mA)

Offline management tool/YKC

Dielectric strength

2000v

Leakage protection

30

Protection grade

IP54

Operating temperature (°C)

-20~50

Storage Temperature (°C)

-40~70

Type of connection

Case C connection

Billing method

Integrated/independent metering

MTBF

50000h

Safety Parameters

Ver Current, Under Voltage, Residual

Current, Surge Protection,Leakage Protection,Short Circuit, etc.

Installation method

Column Type

Material

Plastic

Note:

1. Customized production can be carried out according to the customer's drawings and technical parameters.

2. Charging plug can be configured according to customer requirements.

3.5kW/7kW domestic plastic column type AC EV charging station. Customized for clients.
