This series of EV fast chargers is designed to meet the demands of businesses and public spaces.We are as a qualified supplier of charging stations for State Grid Corporation of China.
Item No :
40kW-1Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :

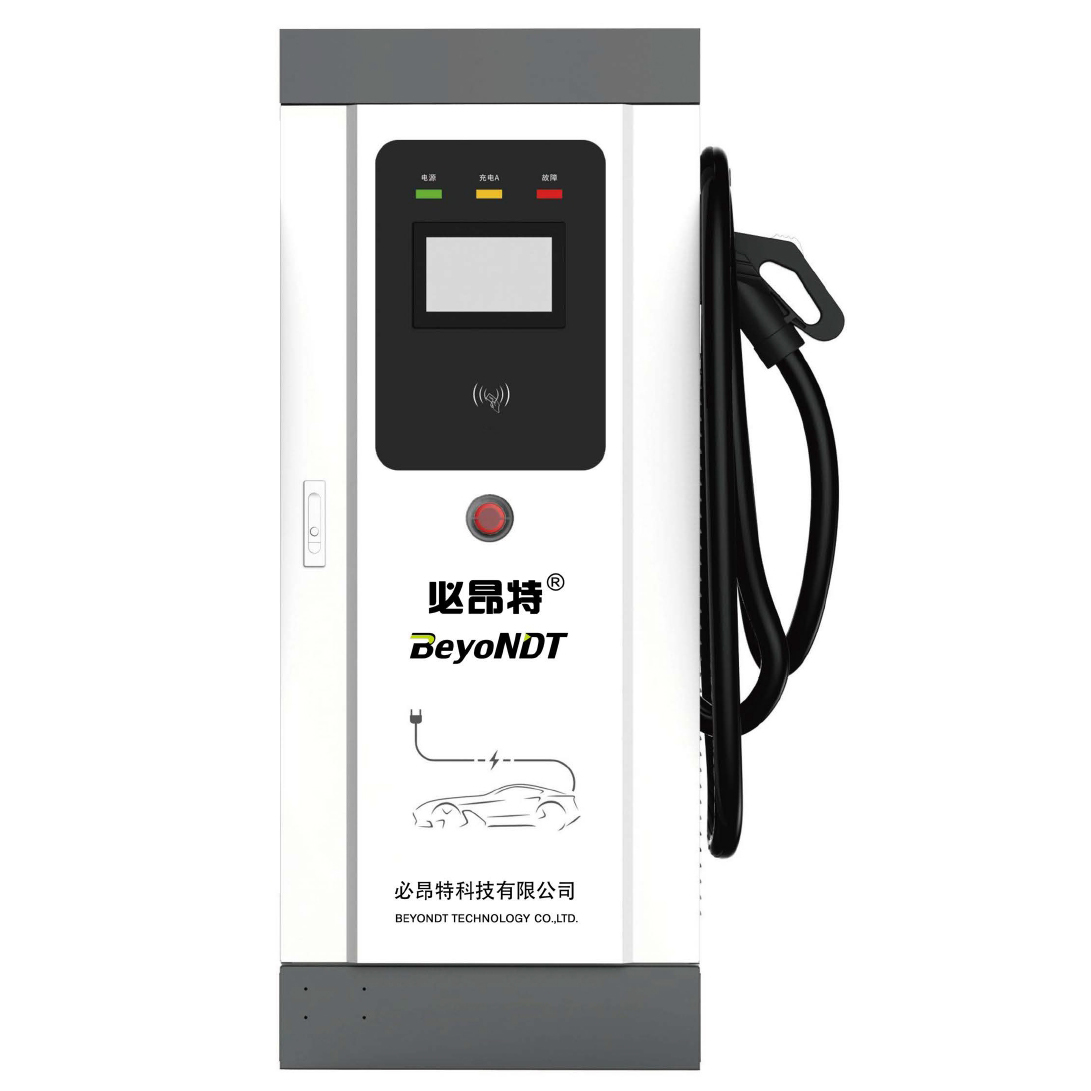

5-20Days40/60kW DC EV Fast Charger
40/60kW DC all-in-one EV charging station. We are as a qualified supplier of charging stations for State Grid Corporation of China.
This series of EV fast chargers is designed to meet the demands of businesses and public spaces.
A standout aspect of this charger is its cost-effectiveness compared to other DC chargers. With the lowest installation costs in its class, the series of EV fast chargers allows site operators to achieve a faster return on investment through reduced capital expenditures.
The user experience is enhanced by a 7-inch LCD touchscreen, powered by Android 10. This smart operating system not only simplifies operation but also provides opportunities for enhanced advertising placement. This feature enables operators to communicate, promote, and attract customers, thereby opening new revenue streams.
Technical Parameter
|
Product name |
40/60kW DC Fast Charger |
|
Input voltage (V) |
380±15% |
|
Rated frequency (Hz) |
45-60 |
|
Output voltage (V) |
200~750 |
|
Rated current (A) |
53/80 |
|
Rated power (kW) |
40/60 |
|
Number of Outputs |
1 |
|
Charging way |
Swipe cards/Scan the code |
|
Noise(dB) |
＜65 |
|
Stabilized current precision |
≤±1% |
|
Stabilized voltage precision |
≤±0.5% |
|
Output current error |
≤±1% |
|
Output voltage error |
≤±0.5% |
|
Display&Touch-Screen Size |
7 Inches Touch Screen |
|
Protection grade |
IP54 |
|
Operating temperature (°C) |
-20~50 |
|
Storage Temperature (°C) |
-40~70 |
|
Billing method |
DC energy meter
|
|
MTBF |
50000h |
|
Safety Parameters |
ver Current, Under Voltage, Residual Current, Surge Protection,Leakage Protection,Short Circuit, etc. |
|
Installation method |
Fall to the ground |
|
Material |
Metal |
Features
Note:
1. Customized production can be carried out according to the customer's drawings and technical parameters.
2. Charging plug can be configured according to customer requirements.
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
This series of EV chargers is designed to meet the demands of businesses and public spaces. Convenient home charging.Customized for clients.
Details
7kW/14kW EV Chargers with dual ports, wall mount, is a state-of-the-art solution for home electric vehicle (EV) charging, combining convenience, efficiency, and advanced technology. This charger is part of Home Charging Station series, is designed to meet the needs of modern EV owners seeking a reliable and smart charging experience.
Details
Built to cater to the ever-growing needs of the modern EV owner, this single-port pedestal stands as a testament to the combination of state-of-the-art design and robust functionality.
Details
7kW/14kW EV Chargers with dual ports, pedestal, is a state-of-the-art solution for home electric vehicle (EV) charging, combining convenience, efficiency, and advanced technology. This charger is Home Charging Station series, is designed to meet the needs of modern EV owners seeking a reliable and smart charging experience.
Details
This series of EV chargers is designed to meet the demands of businesses and public spaces. Convenient home charging.Customized for clients.
Details
Smart Charge Connectivity is a standout feature of this charger. Through a mobile app, users can effortlessly manage charge times, schedule charging sessions, track history and usage, and control multiple stations. This smart technology brings convenience to your fingertips, allowing for efficient management of your EV charging needs.
Details
This series of EV fast chargers is designed to meet the demands of businesses and public spaces.We are as a qualified supplier of charging stations for State Grid Corporation of China.
Details
This series of EV fast chargers is designed to meet the demands of businesses and public spaces.
