European Standards 40/60/120/160/240kW Compact DC Dual Port EV Fast Charger

European Standards 40/60/120/160/240kW Compact DC Dual Port EV Fast Charger

This series of EV fast chargers is designed to meet the demands of businesses and public spaces.

  • Item No :

    40-240kW DUAL PORTS
  • Order(MOQ) :

    1
  • Payment :

    T/T
  • Product Origin :

    CHINA
  • Color :

    Customized
  • Shipping Port :

    SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.
  • Lead Time :

    3-20Days

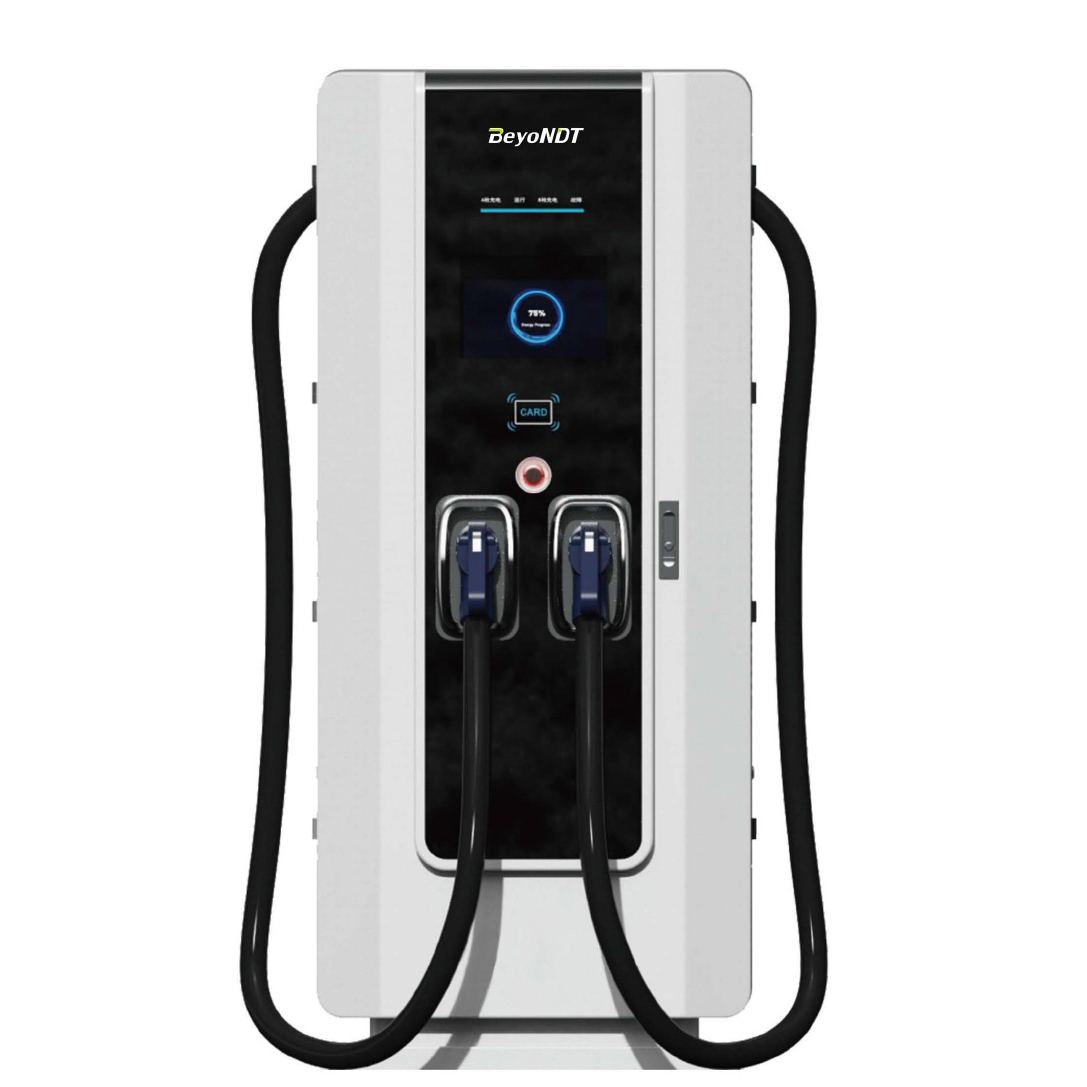

40/60/120/160/240kW Compact DC Dual Port EV Fast Charger

The 40/60/120/160/240kW compact DC dual port EV fast charger with pedestal & POS is an innovative and efficient solution designed for the evolving needs of electric vehicle (EV) charging infrastructure. This charger combines high-powered performance, advanced technology, and user-friendly features, all within a compact and versatile design.

Featuring dual charging ports, the 40kW charger is capable of delivering up to 40kW of power to two vehicles simultaneously. This efficient charging capability is a game-changer, especially in high-demand locations, offering a rapid 30-minute charge that provides over 80 miles of range. Its ultra-compact design packs a substantial DC power output in a small footprint, making it suitable for various installation environments.

Technical Parameter

Product name

Compact DC Dual Port EV Fast Charger

Input voltage (V)

380±15%

Rated frequency (Hz)

45-60

Output voltage (V)

200~750

Rated current (A)

53/80/160/200/250

Rated power (kW)

40/60/120/160/240

Number of Outputs

2

Charging way

Swipe cards/Scan the code

Noise(dB)

65

Stabilized current precision

≤±1%

Stabilized voltage precision

≤±0.5%

Output current error

≤±1%

Output voltage error

≤±0.5%

Display&Touch-Screen Size

7 Inches Touch Screen

Protection grade

IP54

Operating temperature (°C)

-20~50

Storage Temperature (°C)

-40~70

MTBF

50000h

Safety Parameters

ver Current, Under Voltage, Residual

Current, Surge Protection,Leakage Protection,Short Circuit, etc.

Installation method

Fall to the ground

Material

Metal



Features

  • Dual-ports provide up to 40/60/120/160/240kW of power
  • Charge 2 vehicles simultaneously
  • Ultra-compact with big DC power in a small package
  • Compared to other DC chargers, DC Compact has the lowest installation costs, meaning a faster ROI due to reduced capital savings for the site operator
  • Powered by smart operating system, Android 10 with enhanced advertising placement

Note:

1. Customized production can be carried out according to the customer's drawings and technical parameters.

2. Charging plug can be configured according to customer requirements.

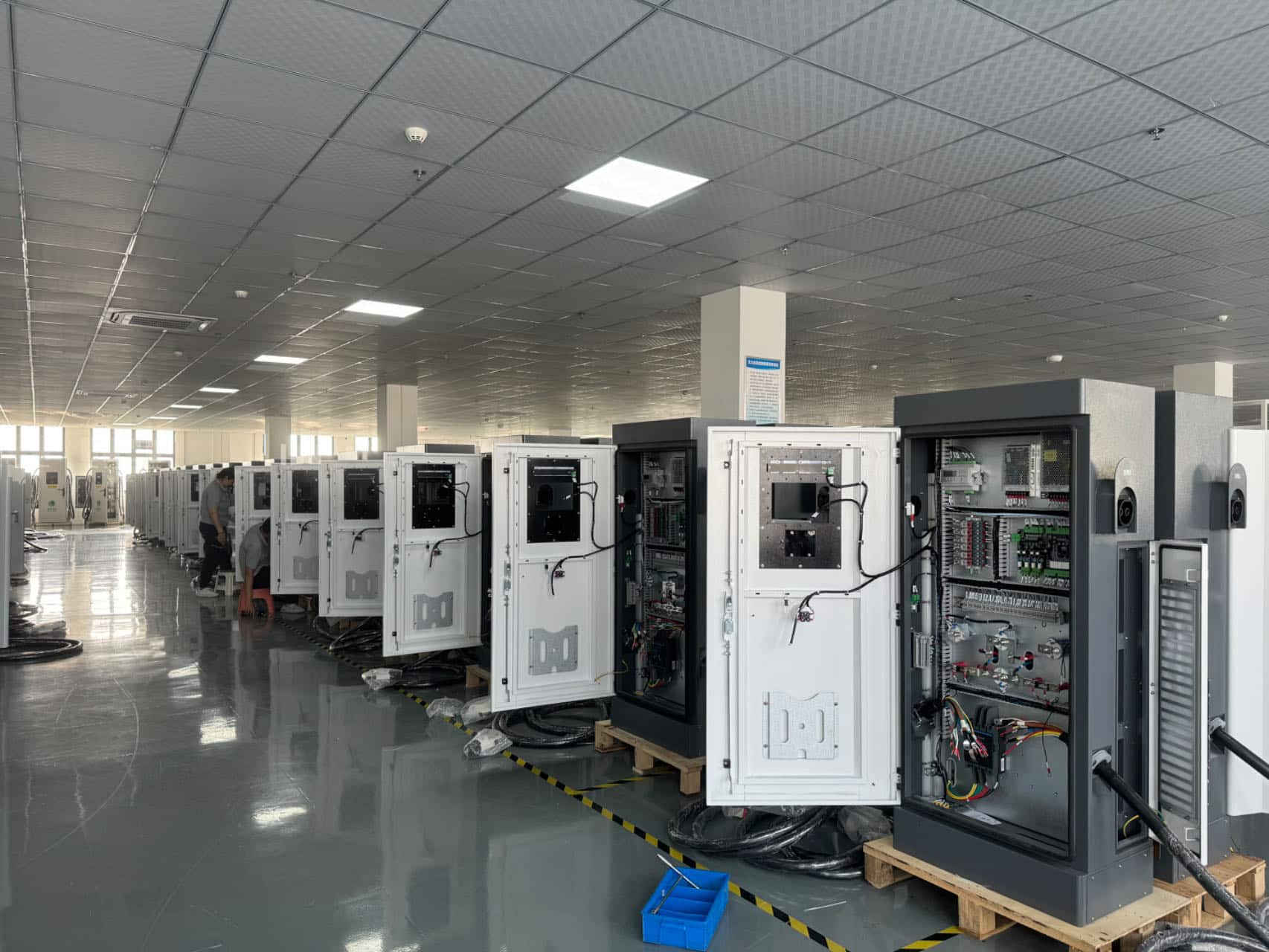

Charging station factory

The 40kW DC dual port EV fast charger with pedestal & POS is an innovative and efficient solution designed for the evolving needs of electric vehicle (EV) charging infrastructure.



Why choose BEYONDT?

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.

2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.

3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
