Built to cater to the ever-growing needs of the modern EV owner, this single-port pedestal stands as a testament to the combination of state-of-the-art design and robust functionality.
Item No :
3658Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :

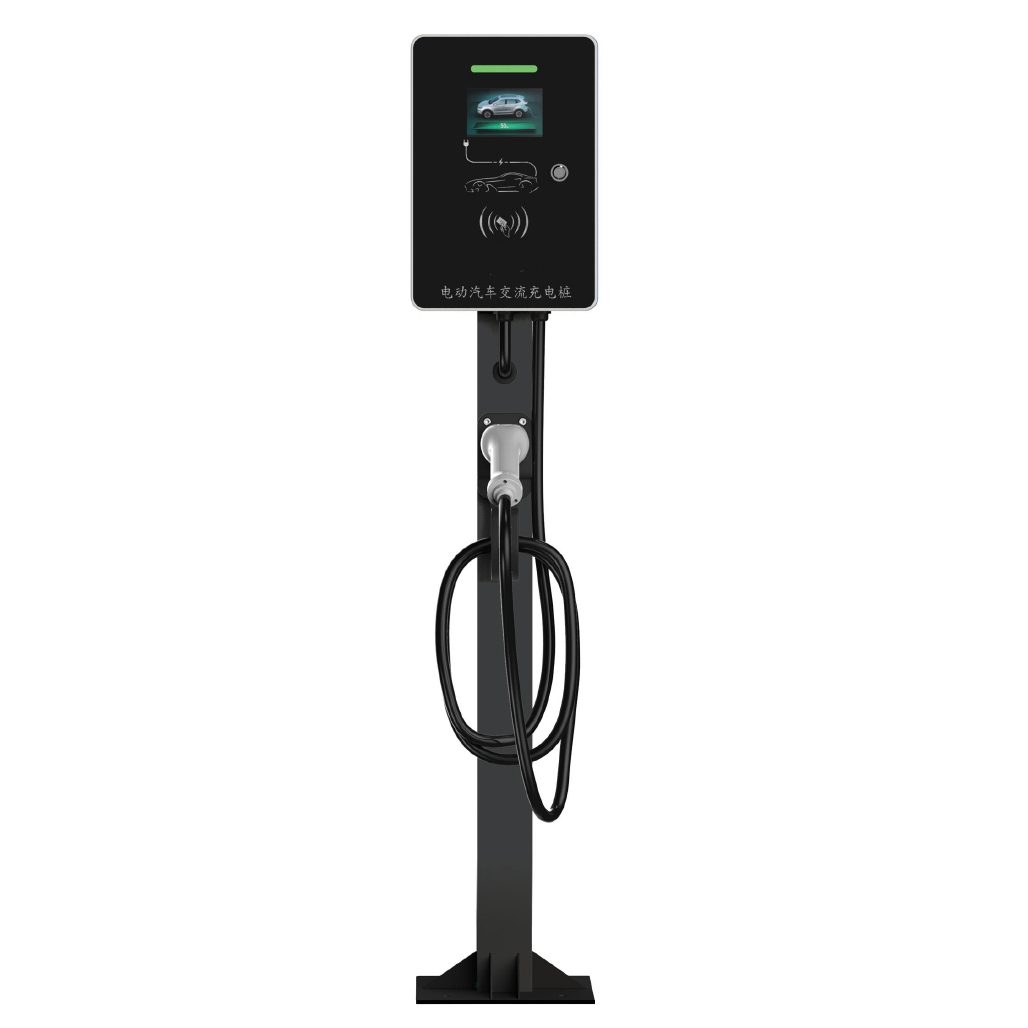

5-20Days3.5kW/7kW Home Pedestal Mount AC EV Charger
This series of home pedestal mount AC EV charger is constructed for convenience, the charger is designed as an open access charger, meaning it does not require any special cards or subscriptions. Whether it's for public installations or private properties, this ensures that any EV user can easily connect and charge their vehicle without a hitch. Smart Charge Connectivity is a standout feature of this charger. Through a mobile app, users can effortlessly manage charge times, schedule charging sessions, track history and usage, and control multiple stations. This smart technology brings convenience to your fingertips, allowing for efficient management of your EV charging needs.
Technical Parameter
|
Product name |
AC 3.5kW7kW |
|
Input voltage (V) |
220V土15% |
|
Rated frequency (Hz) |
45-60 |
|
Output voltage (V) |
220土15% |
|
Rated current (A) |
16A/32A |
|
Rated power (KW) |
3.5kW/7kW |
|
Number of Outputs |
1-2 |
|
Charging way |
Swipe cards/Scan the code |
|
Networking mode |
RJ45/4G/LoRa |
|
Display&Touch-Screen Size |
4.3 Inches Touch Screen/screen-free |
|
Monitoring platform (mA) |
Offline management tool/YKC |
|
Dielectric strength |
≥2000v |
|
Leakage protection |
30 |
|
Protection grade |
IP54 |
|
Operating temperature (°C) |
-20~50 |
|
Storage Temperature (°C) |
-40~70 |
|
Type of connection |
Case C connection |
|
Billing method |
Integrated/independent metering |
|
MTBF |
50000h |
|
Safety Parameters |
ver Current, Under Voltage, Residual Current, Surge Protection,Leakage Protection,Short Circuit, etc. |
|
Installation method |
Wall mounted |
|
Material |
Metal |
Note:
1. Customized production can be carried out according to the customer's drawings and technical parameters.
2. Charging plug can be configured according to customer requirements.
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
This series of EV chargers is designed to meet the demands of businesses and public spaces. Convenient home charging.Customized for clients.
