7kW/14kW EV Chargers with dual ports, pedestal, is a state-of-the-art solution for home electric vehicle (EV) charging, combining convenience, efficiency, and advanced technology. This charger is Home Charging Station series, is designed to meet the needs of modern EV owners seeking a reliable and smart charging experience.
Item No :
3653Order(MOQ) :
1Payment :
T/TProduct Origin :
CHINAColor :
CustomizedShipping Port :
SHANGHAI/NINGBO/YIWU/SHENZHEN/GUANGZHOU etc.Lead Time :

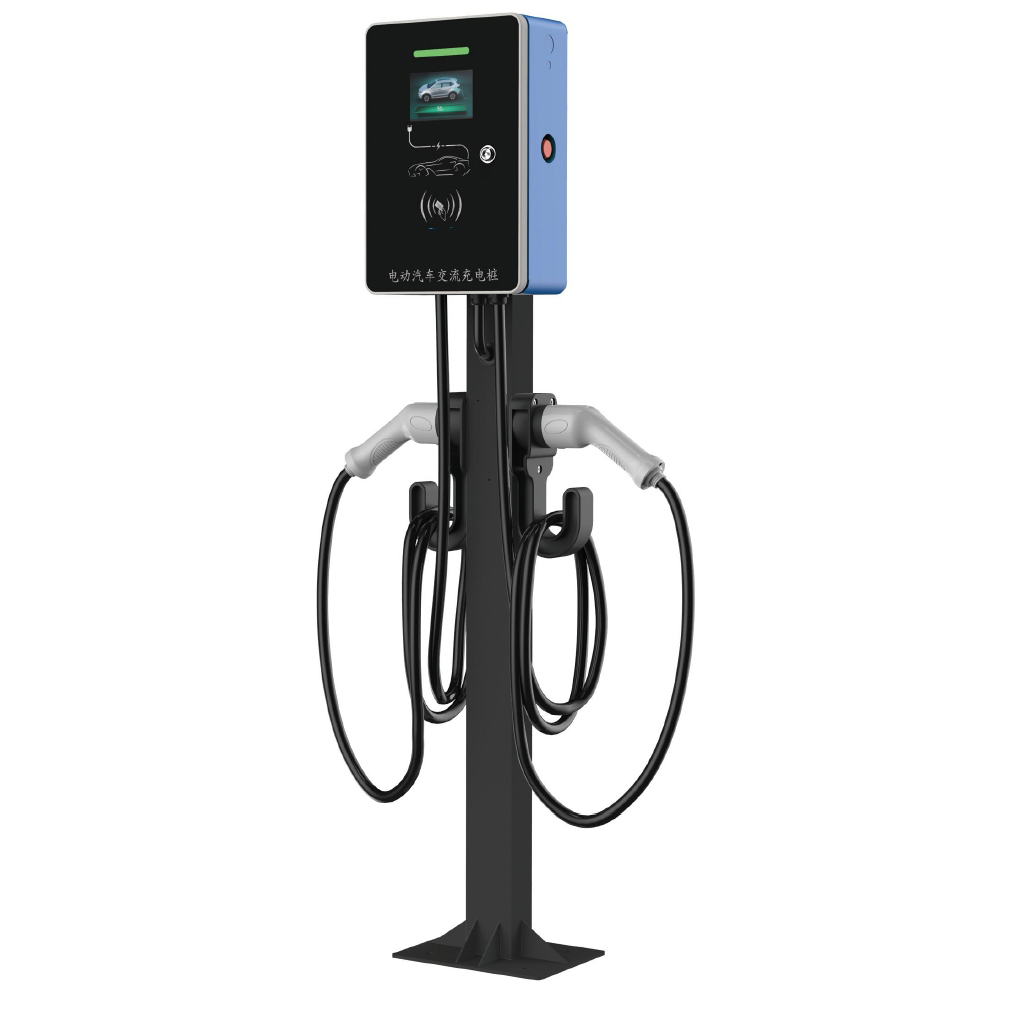

3-20Days7kW/14kW Petestal Mount Dual Ports AC EV Chargers
7kW/14kW Petestal Mount Dual Port AC EV Chargers. Elevate your home charging setup with pedestal mount EV chargers. These chargers blend high-speed charging capabilities with a sleek, space-saving design. Perfect for personal garages or driveways, they offer the convenience of a public charging station right at home. Built to withstand the elements, they're durable and secure. With user-friendly operation and safety features, these chargers provide a fast, efficient, and reliable charging experience for every EV owner seeking the ultimate in home charging solutions.
These robust, high-capacity chargers are ideal for accommodating multiple electric vehicles, providing fast and efficient charging to customers, employees, and visitors alike. Equipped with cutting-edge technology, they offer features like multiple charging ports, real-time monitoring, and smart payment options. Durable and weather-resistant, they are built to perform in various environments. By installing these chargers, businesses can enhance their green credentials, attract eco-conscious customers, and contribute to a sustainable future.
Technical Parameter
|
Product name |
AC 7kW/14kW |
|
Input voltage (V) |
220V土15% |
|
Rated frequency (Hz) |
45-60 |
|
Output voltage (V) |
220土15% |
|
Rated current (A) |
16A*2/32A*2 |
|
Rated power (KW) |
7kW/7kW*2 |
|
Number of Outputs |
2 |
|
Charging way |
Swipe cards/Scan the code |
|
Networking mode |
RJ45/4G/LoRa |
|
Display&Touch-Screen Size |
4.3 Inches Touch Screen/screen-free |
|
Monitoring platform (mA) |
Offline management tool/YKC |
|
Dielectric strength |
≥2000v |
|
Leakage protection |
30 |
|
Protection grade |
IP54 |
|
Operating temperature (°C) |
-20~50 |
|
Storage Temperature (°C) |
-40~70 |
|
Type of connection |
Case C connection |
|
Billing method |
Integrated/independent metering |
|
MTBF |
50000h |
|
Safety Parameters |
ver Current, Under Voltage, Residual Current, Surge Protection,Leakage Protection,Short Circuit, etc. |
|
Installation method |
Column type |
|
Material |
Metal |
Note:
1. Customized production can be carried out according to the customer's drawings and technical parameters.
2. Charging plug can be configured according to customer requirements.
Why choose BEYONDT?
1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.
2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.
3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
This series of EV chargers is designed to meet the demands of businesses and public spaces. Convenient home charging.Customized for clients.
